Navigation Unit - Installation

INSTALLATION

1. Connect the electrical connector to the navigation port.

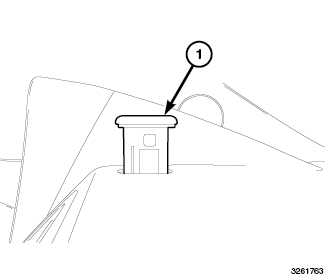

2. Push the navigation port into the instrument panel until it snaps into place securely.

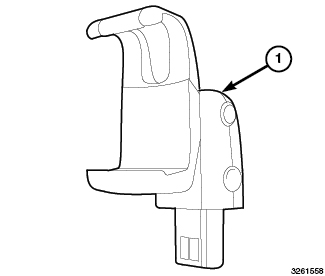

3. Install the navigation mount holder (1) and navigation screen.
4. Connect the negative battery cable.
5. Verify functionality of the navigation unit.
