Module-Steering Control C3

Harness-Family: Steering_Wheel

Color: ~~

Gender: MALE

Part Number: ~~

Part Description: Not Available

Connector No: D3816C

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

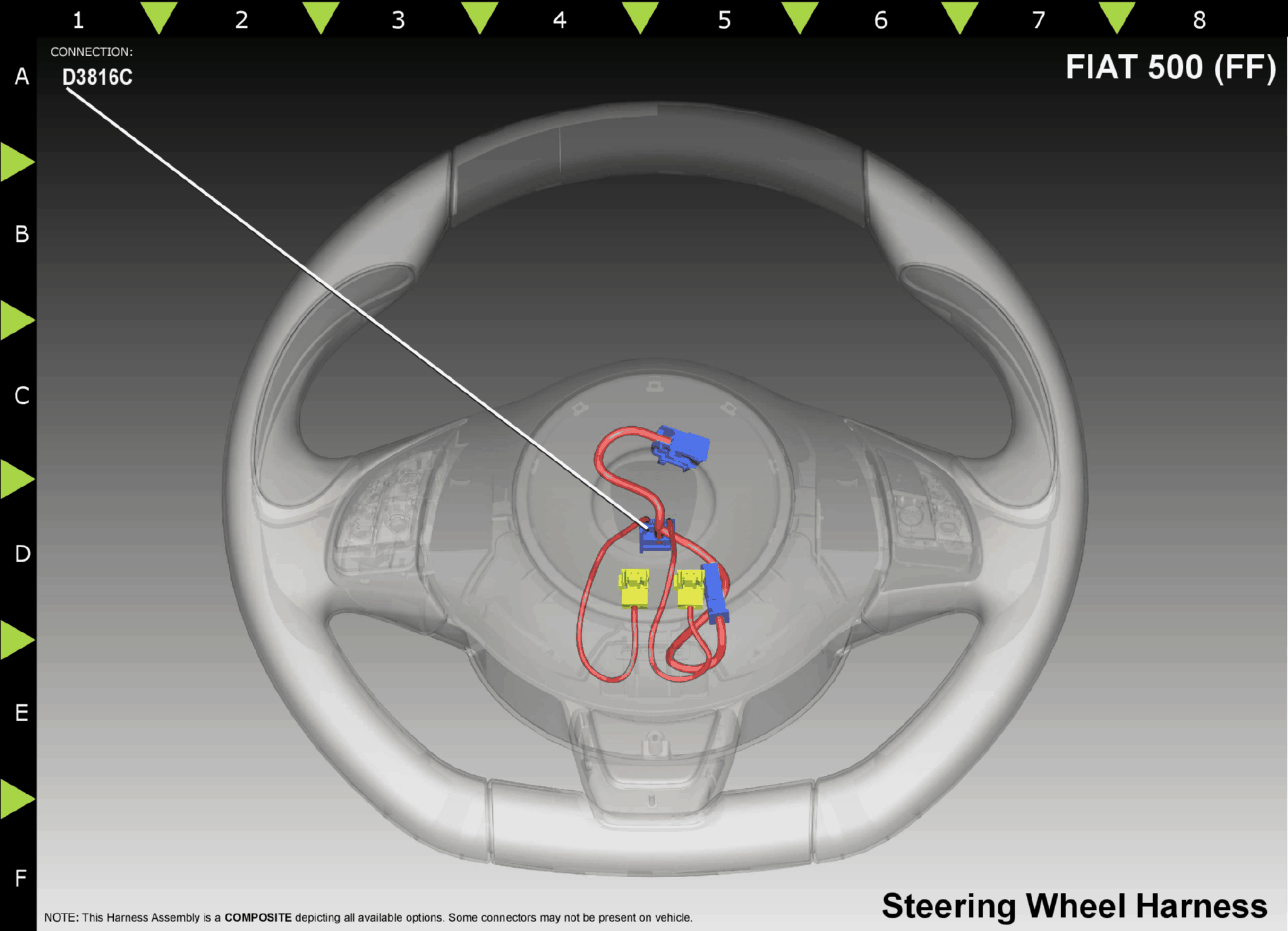

Fig 1: Module-Steering Control C3 Component Location
GCWD1178958Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
1 R63 BK 20 DRIVER SQUIB 2 LINE 1 N/A
2 R61 YL 20 DRIVER SQUIB 2 LINE 2 N/A
(1) Pins not listed are not used for this connector
