Removal And Installation

REMOVAL

1. Disconnect and isolate the negative battery cable.
2. Remove the engine thermostat. Refer to THERMOSTAT, REMOVAL AND INSTALLATION .

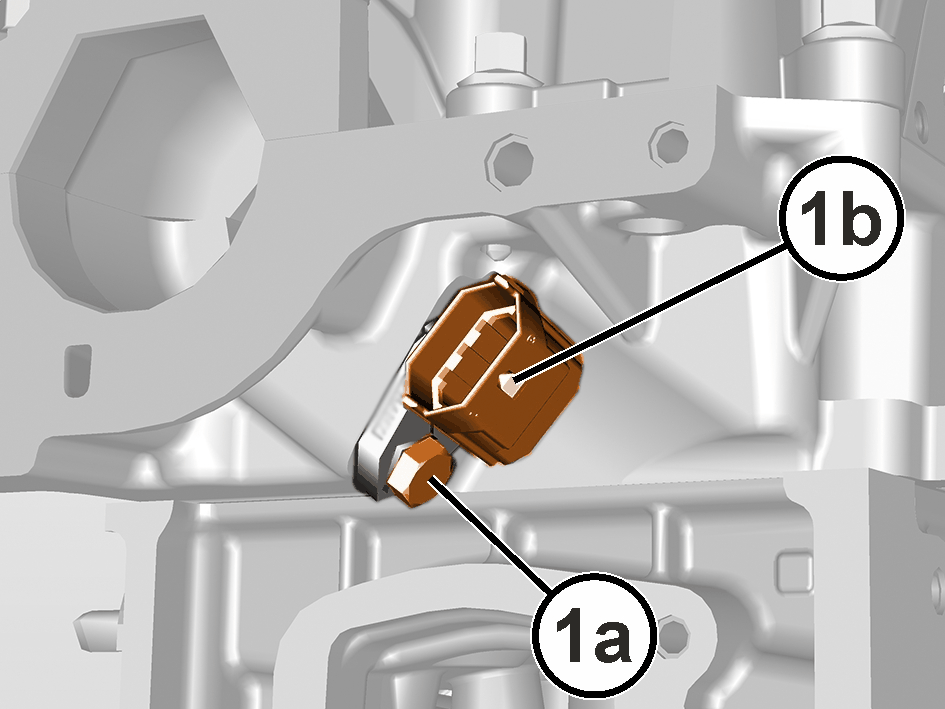

   Courtesy of CHRYSLER GROUP, LLC

3. Remove the bolt (1a).
4. Remove the camshaft position sensor (1b).

INSTALLATION

1. Install the camshaft position sensor back in position and tighten the screw to proper specification. Refer to TORQUE SPECIFICATIONS  .
2. Install the engine thermostat. Refer to THERMOSTAT, REMOVAL AND INSTALLATION .
3. Connect the negative battery cable.
