Disassembly And Assembly: Assembly

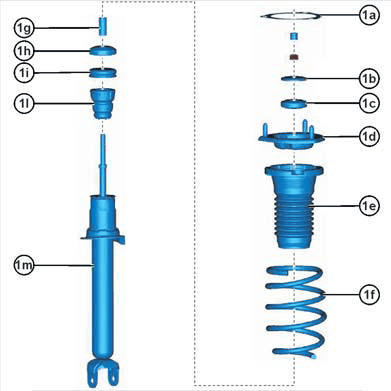

GC0178548Courtesy of CHRYSLER GROUP, LLC
  1. Reassemble the strut assembly in the order shown in the illustration .
  2. Position the strut assembly and compress the spring.

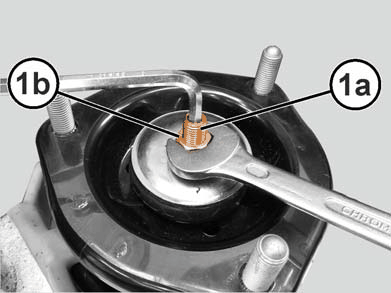

    GC0178407Courtesy of CHRYSLER GROUP, LLC
  3. Install the strut rod nut and holding the strut rod, tighten the strut rod nut to the proper torque. Refer to TORQUE SPECIFICATIONS  .
  4. Install the strut assembly. Refer to STRUT, SUSPENSION, ASSEMBLY, REMOVAL AND INSTALLATION .
