Sensor, Crankcase Pressure: Removal

  1. Disconnect and isolate the negative battery cable.
  2. Remove the engine cover (Refer to ENGINE/COVER, ENGINE/REMOVAL AND INSTALLATION ).

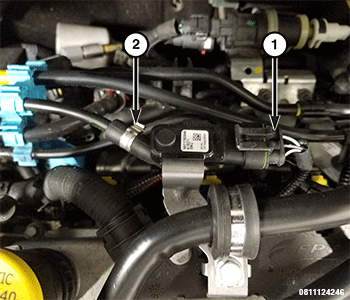

    GC0184229Courtesy of CHRYSLER GROUP, LLC
  3. Disconnect the crankcase pressure sensor wire harness connector (1).
  4. Loosen the clamp and disconnect the oil vapor intake hose (2).
  5. Open the clip and remove the crankcase pressure sensor.
