Shroud, Steering Column, Lower: Installation

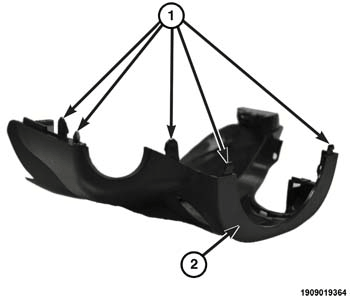

- Install the lower shroud (2) into the upper shroud, aligning the tabs (1) and clipping the shrouds to one another.

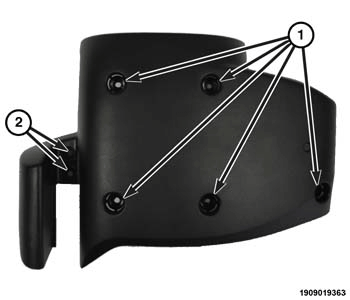

- Install the screws (1, 2) attaching the lower shroud to the upper shroud and tighten securely.

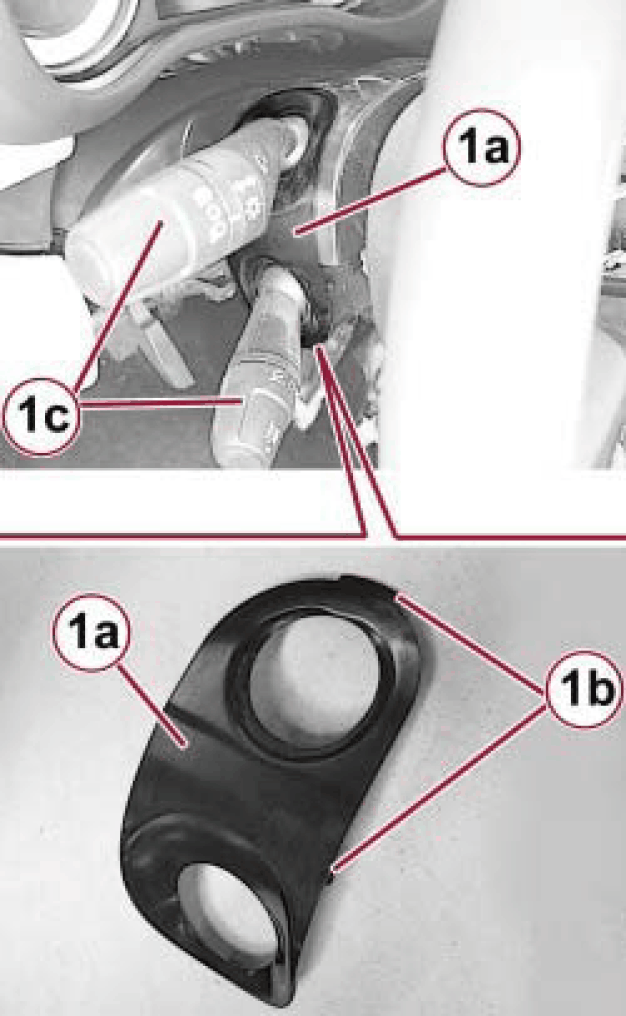

- Using a trim stick or equivalent, engage the retaining clips (1b) and install the side cover (1a) around the lever controls (1c).
