Removal And Installation: Removal

WARNING: This page is about a different car, the 2019 Fiat 500X. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

If a NEW Security Gateway Module (SGW) is being installed, use the diagnostic scan tool to flash the module. Failure to flash the module will leave the SGW module in a locked mode preventing SGW module operation.

Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.
Remove the steering column opening cover. Refer to COVER, STEERING COLUMN OPENING, REMOVAL .

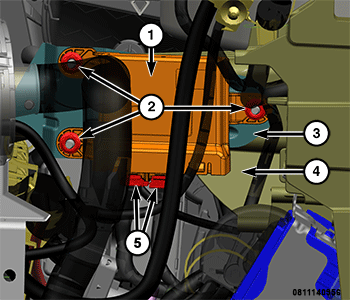

Courtesy of CHRYSLER GROUP, LLC
Remove the three SGW nuts (2) and disconnect the wire harness connectors (5).
Remove the SGW (1) from the studs on the SGW bracket (3), which is secured to the instrument panel carrier bulkhead support (4).
