Removal And Installation
REMOVAL
- Remove the starter. Refer to STARTER, REMOVAL AND INSTALLATION
.

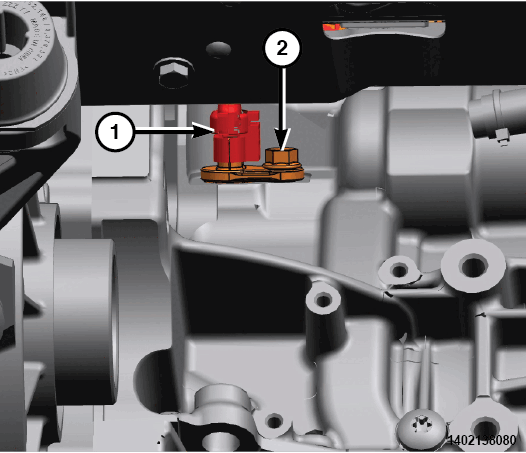

- Disconnect the wire harness connection (1) for the engine crankshaft position sensor.
- Remove the screw (2) and remove the crankshaft position sensor.
INSTALLATION
NOTE:
When replacing the sensor, connect the diagnostic tool, enter "DIAGNOSIS ACTIVE" and run the self-learning procedure.
- Install the crankshaft position sensor and tighten the screw (2) to the proper torque specifications. Refer to FUEL INJECTION, TECHNICAL SPECIFICATIONS .
- Connect the wire harness connection (1) to the crankshaft position sensor.
- Install the starter. Refer to STARTER, REMOVAL AND INSTALLATION .
