Power Tailgate Windows: Description

Electrically controlled station wagon tailgate window is operated by a reversible electric motor and a window regulator mechanism in tailgate. Control is through a key operated lock switch on upper right of tailgate outer panel, and a toggle or push-pull switch on left front door or instrument panel for driver control. A limit switch located at right side of tailgate pillar post prevents operation of window when tailgate is open.

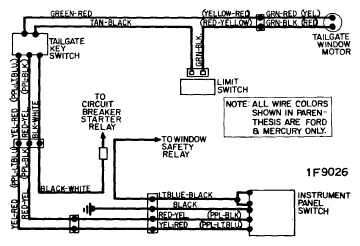

Fig 1: 1971-72 Ford Motor Co. Tailgate Power Window
G09328768Courtesy of FORD MOTOR CO.
