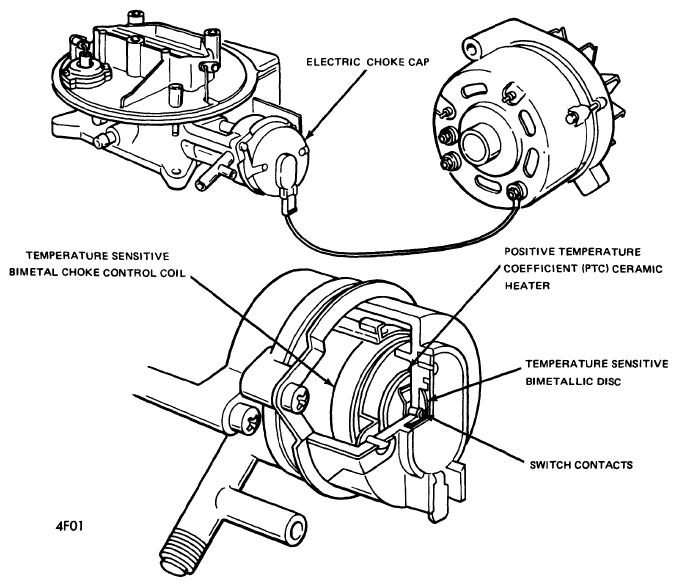

Electric Assist Choke: Testing
- Remove air cleaner, check choke plate and choke linkage for free operation. Remove hot air supply tube at choke housing, and install a suitable choke tester (LRE-34618). Perform hot and cold choke function per instructions contained in tester kit.
- With the engine running, disconnect the stator lead at connector and connect a 0-3 amp. ammeter between the choke lead connector and stator lead. Start the engine and observe ammeter for current draw. Cool choke cap until temperature is less than 55°F, using the choke tester. If a current flow is noted on ammeter, the cap is defective.
- Now operate the engine for about 5 minutes. A current reading of 0.3 to 1 amp. should be noted. The choke cap is out of spec if the above conditions are not met. Be sure the alternator is operating properly before replacing the choke cap.
Courtesy of FORD MOTOR CO.
