Tune-Up - 6 CYL: Distributor

Point Gap;
	170"	.027"
	240" F100 & E100 Bus	.027"
	240" F250/350, P350 & E300 Van	.025"
	300"	.027"
Cam Angle;
	170" & 300"	33-38°
	240" F100 & E100 Bus	33-38°
	240" F250/350, P350 & E300 Van	34-39.5°
Breaker Arm Spring Tension		17-21 ozs.
Condenser Capacity		.21-.25 mfd.

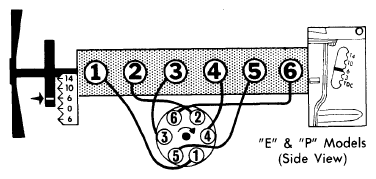

Fig 1: Firing Order & Timing Marks

G09324921

Courtesy of FORD MOTOR CO.
