Electric Assist Choke: Testing
- Remove air cleaner, check choke plate and choke linkage for free operation. Remove hot air supply tube at choke housing, and install Choke Tester (LRE34618). Perform hot and cold choke function per instructions contained in tester kit.
- With engine running, disconnect the stator lead at connector and connect a 0-3 amp ammeter or test light between the choke lead connector and stator lead. If light does not glow, replace choke cap assembly.
- Operate engine for about 5 minutes. A current reading of 0.3 to 1 amp should be noted. If reading is not correct, check alternator for proper operation and if good, replace choke cap.

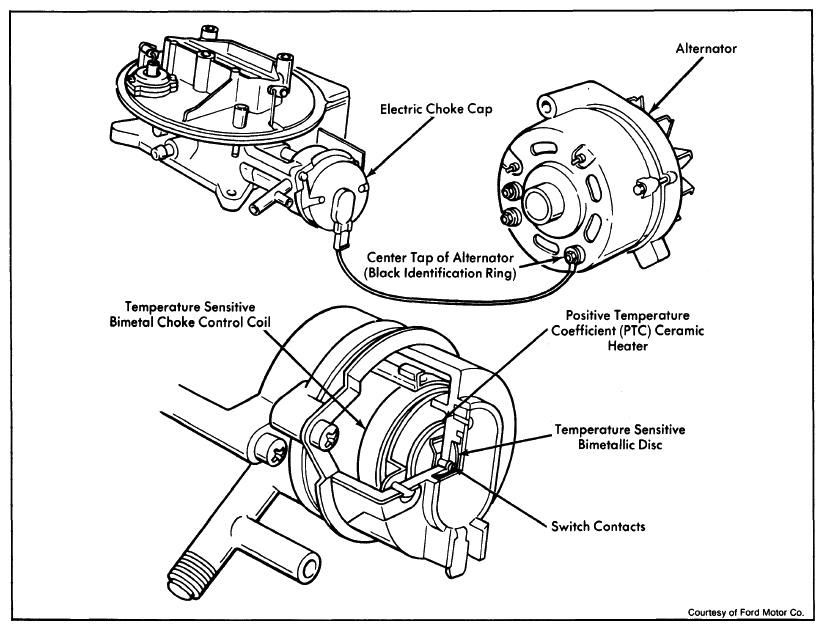

Courtesy of FORD MOTOR CO.
