Wiring Diagrams

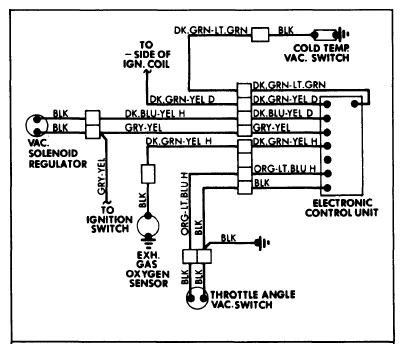

Fig 1: 1978 Feedback Carburetor System Wiring Diagram
G09354709Courtesy of FORD MOTOR CO.

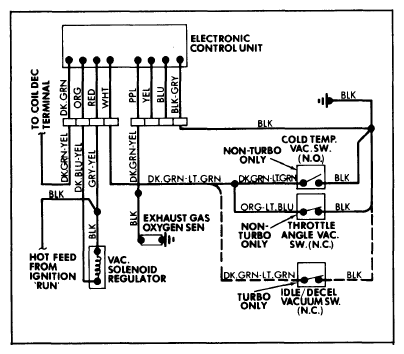

Fig 2: 1979 Feedback Carburetor System Wiring Diagram
G09354710Courtesy of FORD MOTOR CO.
