General Motors

With lock cylinder in "OFF-UNLOCK" position (Tilt or Telescope column) or "OFF" position (Standard column), insert small screwdriver into hole in switch and move slide portion of switch to top position. On Standard column models, move slider part of switch back one detent ("OFF" position). Fit actuator rod into slider hole and loosely assemble switch on steering column. On Standard column, tighten retaining screws to 35 INCH pounds. On other columns, lightly push switch down column to remove slack in rod, then tighten screws to 35 INCH pounds torque. Connect wiring and check operation of switch.

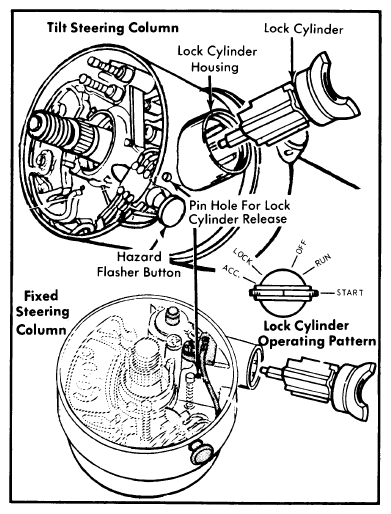

Fig 1: Ford Motor Co. Lock Cylinder Assembly Showing Lock Cylinder Release Pin Hole
G09347101Courtesy of NOT AVAILABLE
