Rear Window Defogger Fan: Testing

Check that all in-line fuses or circuit breakers are operational and supply power. Measure voltage at motor, if no voltage is present check wiring harness and control switch. If motor runs at some speeds, but not at others, check speed control resistors.

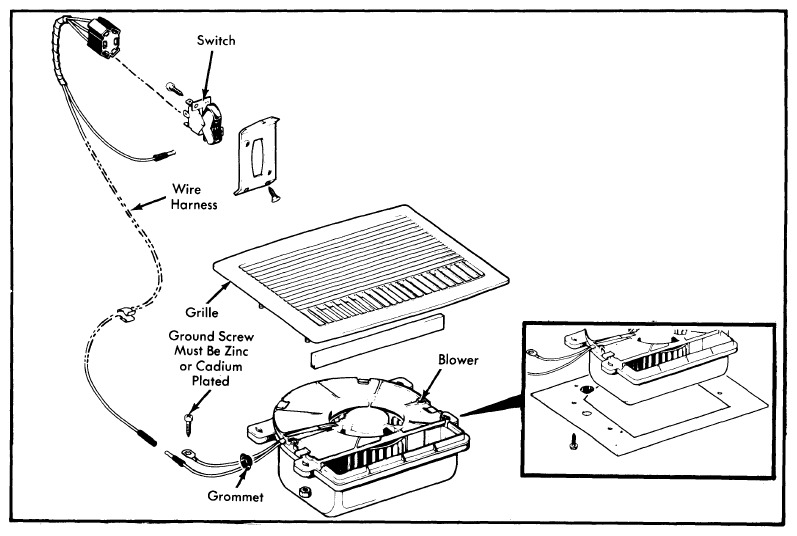

Fig 1: Component Layout Of Rear Window Defogger Fan System (American Motors Shown)
G09347036Courtesy of NOT AVAILABLE
