System Precautions

A spark may occur if distributor is moved with ignition switch in the "ON" position. DO NOT remove secondary spark plug wires while engine is running.

Silicone dielectric compound must be applied to all insulating areas of distributor, coil, and spark plug boots. Coat distributor rotor tip with dielectric compound to a thickness of 1/32". DO NOT use silicone dielectric compound on multi-point rotor.

Fig 1: 1975 Motorcraft Solid State Ignition System Wiring Diagram

Courtesy of FORD MOTOR CO.

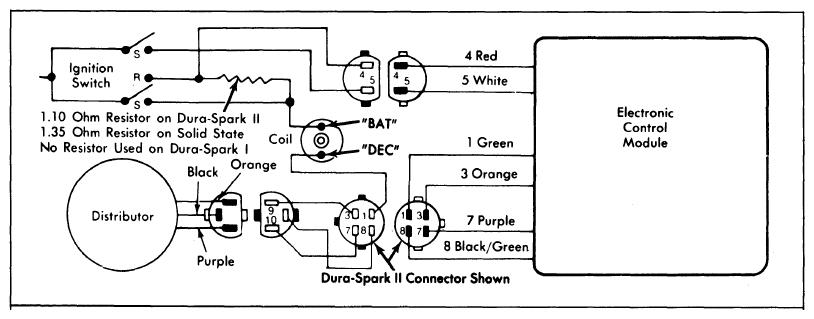

Fig 2: 1976-79 Motorcraft Dura-Spark I & II Ignition System Wiring Diagram

Courtesy of FORD MOTOR CO.

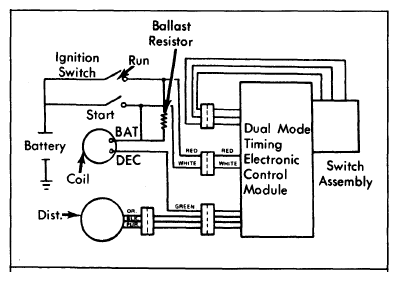

Fig 3: 1979 Motorcraft Dual Mode Timing Dura-Spark II Ignition System Wiring Diagram

Courtesy of FORD MOTOR CO.
