Circuit Breaker Test

Remove circuit breaker from fuse panel. Connect tester to circuit breaker, adjust to 6 amps, and leave on for 10 minutes. Replace circuit breaker if it opens.

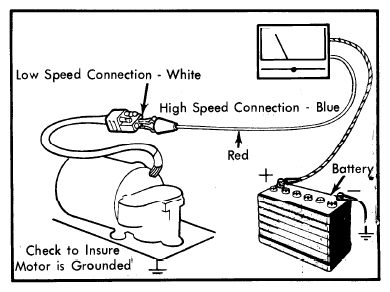

Fig 1: Motor Current Draw Test
Courtesy of FORD MOTOR CO.

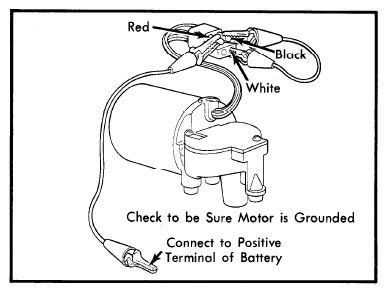

Fig 2: Motor Park Test
Courtesy of FORD MOTOR CO.
Adjust tester so current flow is twice breaker rating. Breaker should open within 30 seconds. If not, replace breaker or switch.
