Wiper Switch Continuity Test

Test Switch continuity with an ohmmeter connected between switch terminals as shown in Fig 1. To detect marginal operation of the switch, move the switch lever as each reading is being taken. If switch does not show continuity or if poor continuity exists, replace switch.

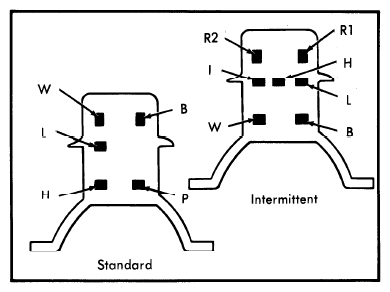

Fig 1: Wiper Switch Continuity Test Terminal Locations

Courtesy of FORD MOTOR CO.

WIPER CONTINUITY TEST

Position

Standard Wiper Intermittent Wiper

Off

P-L

LOW

B-L

HIGH

B-H

B-H-L

WASH

B-W

INTER

B-I

ANY

⁽¹⁾R1-R2

⁽¹⁾	Variable resistance between R1 and R2 should be minimum of 420 and maximum of 13, 000 ohms.
