Fig. 18 Calib. Code 2-03E-R0 Exc. A/C & High Alt.
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

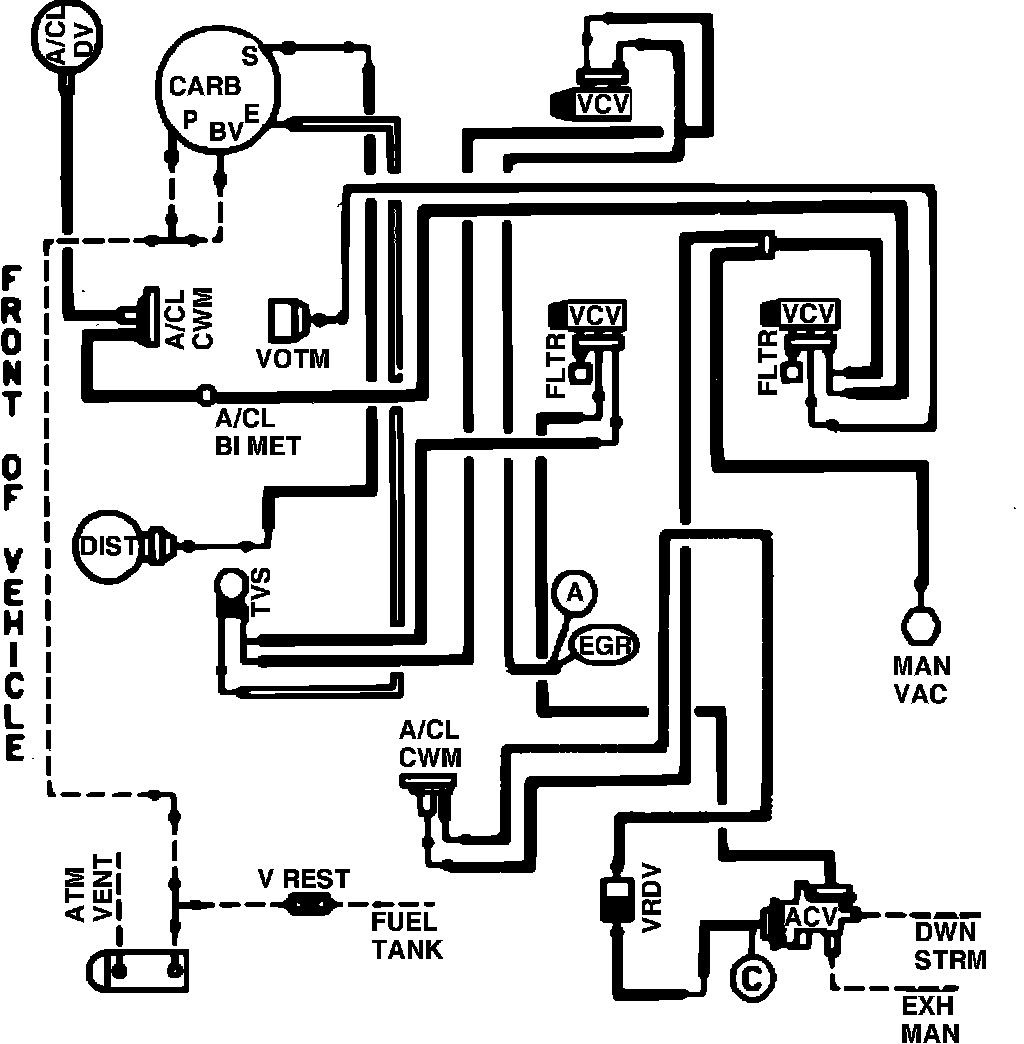

Fig. 18 Calib. Code 2-03E-R0 Exc. A/C & High Alt.
Vacuum hose routing:
