Fig. 19 Calib. Code 2-03G-R01 With A/C, Exc. High Alt.
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

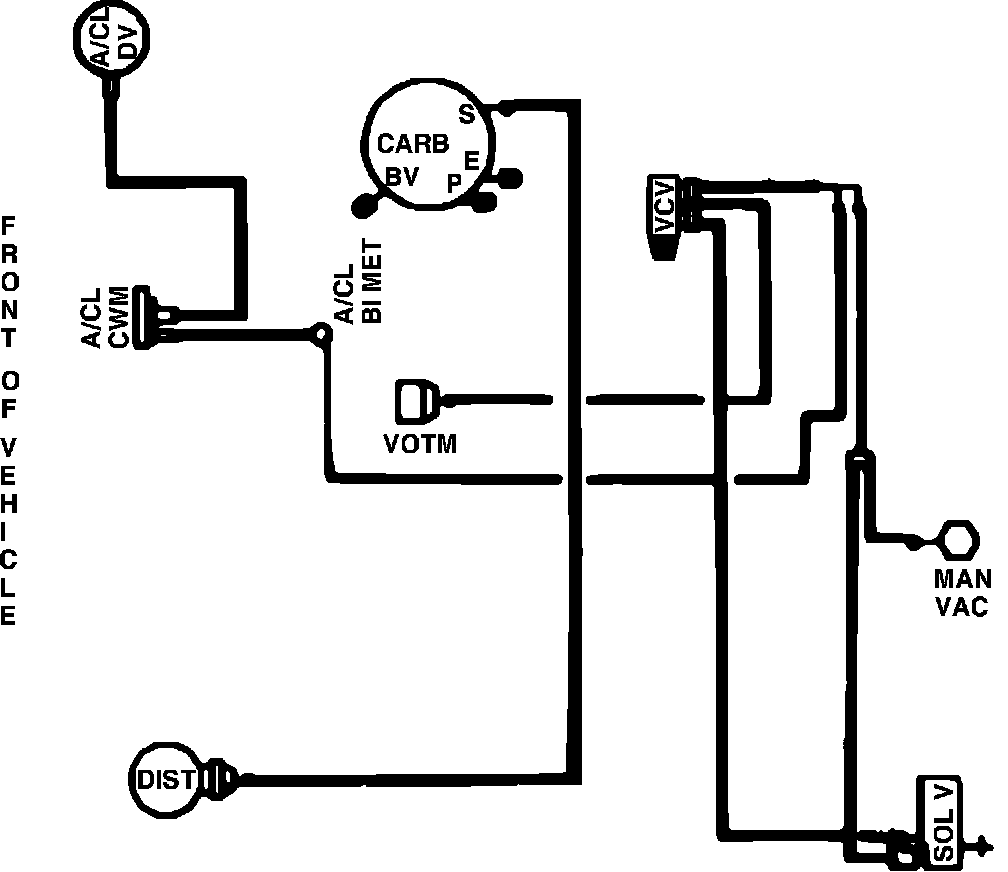

Fig. 19 Calib. Code 2-03G-R01 With A/C, Exc. High Alt.
Vacuum hose routing:
