Wheel Alignment Specifications

WHEEL ALIGNMENT SPECIFICATIONS

Axle Gap (Inches) (1) Specification
3 1/4 to 3 1/2
Caster (Degrees) 6 1/4 to 8
Camber (Degrees) -1 3/4 to -1/4
Toe-in (Inches) 1/32
Steering Axis Inclination (Degrees) 7
3 1/2 to 3 3/4
Caster (Degrees) 5 3/4 to 7 1/4
Camber (Degrees) -1 1/2 to -1/4
Toe-in (Inches) 1/32
Steering Axis Inclination (Degrees) 7
3 3/4 to 4
Caster (Degrees) 5 to 6 3/4
Camber (Degrees) -1 to +3/4
Toe-in (Inches) 1/32
Steering Axis Inclination (Degrees) 7
4 to 4 1/4
Caster (Degrees) 4 1/2 to 5 3/4
Camber (Degrees) -1/2 to + 1 1/4
Toe-in (Inches) 1/32
Steering Axis Inclination (Degrees) 7
4 1/4 to 4 1/2
Caster (Degrees) 4 to 5 1/4
Camber (Degrees) 0 to + 1 3/4
Toe-in (Inches) 1/32
Steering Axis Inclination (Degrees) 7
4 1/2 to 4 3/4
Caster (Degrees) 3 1/4 to 4 1/2
Camber (Degrees) + 1/2 to + 2 3/4
Toe-in (Inches) 1/32
Steering Axis Inclination (Degrees) 7
4 3/4 to 5
Caster (Degrees) 2 1/2 to 4
Camber (Degrees) +1 to + 2 3/4
Toe-in (Inches) 1/32
Steering Axis Inclination (Degrees) 7
5 to 5 1/4
Caster (Degrees) 2 to 3 1/4
Camber (Degrees) + 1 1/2 to +3 1/4
Toe-in (Inches) 1/32
Steering Axis Inclination (Degrees) 7
5 1/4 to 5 1/2
Caster (Degrees) 1 1/2 to 2 3/4
Camber (Degrees) +2 to 3 3/4
Toe-in (Inches) 1/32
Steering Axis Inclination (Degrees) 7

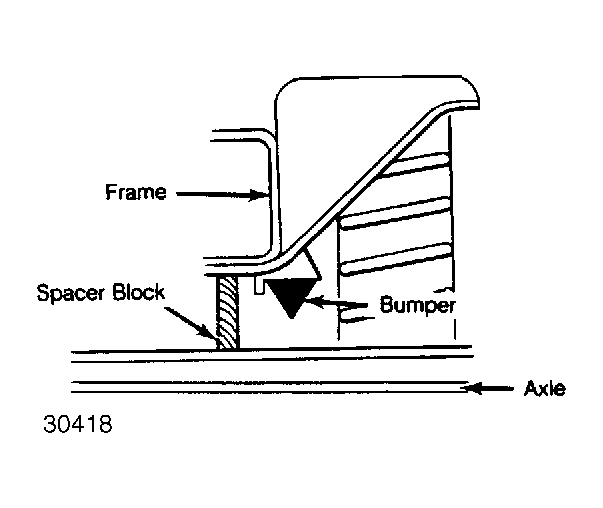

(1) Axle gap is distance measured from top of axle tube to bottom of spring tower at center front face of jounce stop. See Figure .
WHEEL ALIGNMENT SPECIFICATIONS

Axle Gap (Inches) (1) Specification
3 1/4 to 3 1/2
Caster (Degrees) 9 to 10 1/2
Camber (Degrees) -1 3/4 to -1/4
Toe-in (Inches) 1/32
Steering Axis Inclination (Degrees) 8
3 1/2 to 3 3/4
Caster (Degrees) 8 1/2 to 9 3/4
Camber (Degrees) -1 1/2 to +1/4
Toe-in (Inches) 1/32
Steering Axis Inclination (Degrees) 8
3 3/4 to 4
Caster (Degrees) 7 1/8 to 9
Camber (Degrees) -1 to +3/4
Toe-in (Inches) 1/32
Steering Axis Inclination (Degrees) 8
4 to 4 1/4
Caster (Degrees) 7 1/8 to 8 1/2
Camber (Degrees) -1/2 to + 1 1/4
Toe-in (Inches) 1/32
Steering Axis Inclination (Degrees) 8
4 1/4 to 4 1/2
Caster (Degrees) 6 1/2 to 7 3/4
Camber (Degrees) 0 to + 1 3/4
Toe-in (Inches) 1/32
Steering Axis Inclination (Degrees) 8
4 1/2 to 4 3/4
Caster (Degrees) 5 3/4 to 7
Camber (Degrees) + 1/2 to + 2 1/4
Toe-in (Inches) 1/32
Steering Axis Inclination (Degrees) 8
4 3/4 to 5
Caster (Degrees) 5 1/4 to 6 1/2
Camber (Degrees) +1 to + 2 3/4
Toe-in (Inches) 1/32
Steering Axis Inclination (Degrees) 8
5 to 5 1/4
Caster (Degrees) 4 5/8 to 6
Camber (Degrees) +1 1/2 to +3 1/4
Toe-in (Inches) 1/32
Steering Axis Inclination (Degrees) 8
5 1/4 to 5 1/2
Caster (Degrees) 4 to 5 1/2
Camber (Degrees) +2 to +3 3/4
Toe-in (Inches) 1/32
Steering Axis Inclination (Degrees) 8
(1) Axle gap is distance measured from top of axle tube to bottom of spring tower at center front face of jounce stop. See Figure .
