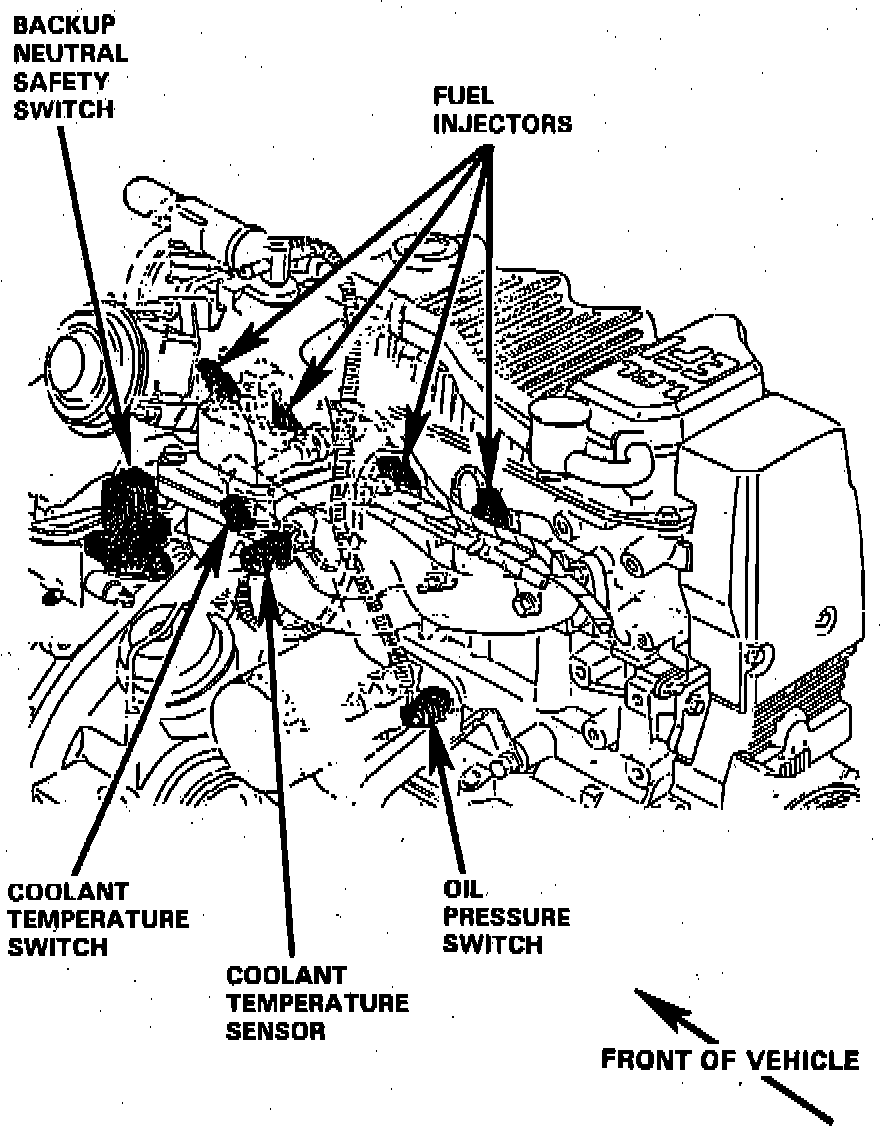

Coolant Temperature Sensor/Switch (For Computer): Locations
Rear Of Engine.:
LH Rear Of Engine
Applicable to: 1983-85 Models w/EFI
