Control Units
CONTROL UNITS LOCATION
| Component |
Location |

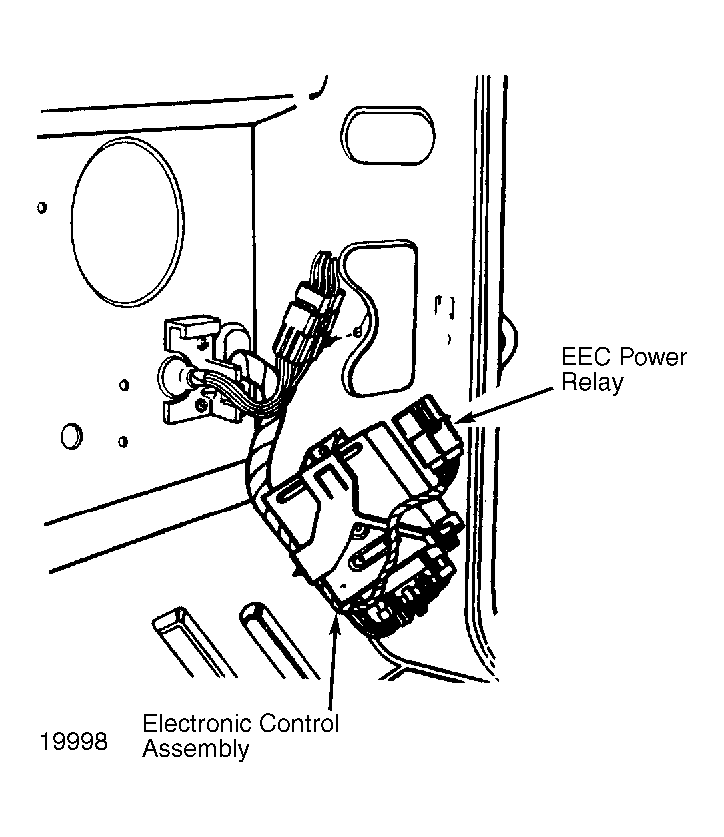

| Electronic Control Assembly |
On right side kick panel. See Figure. |

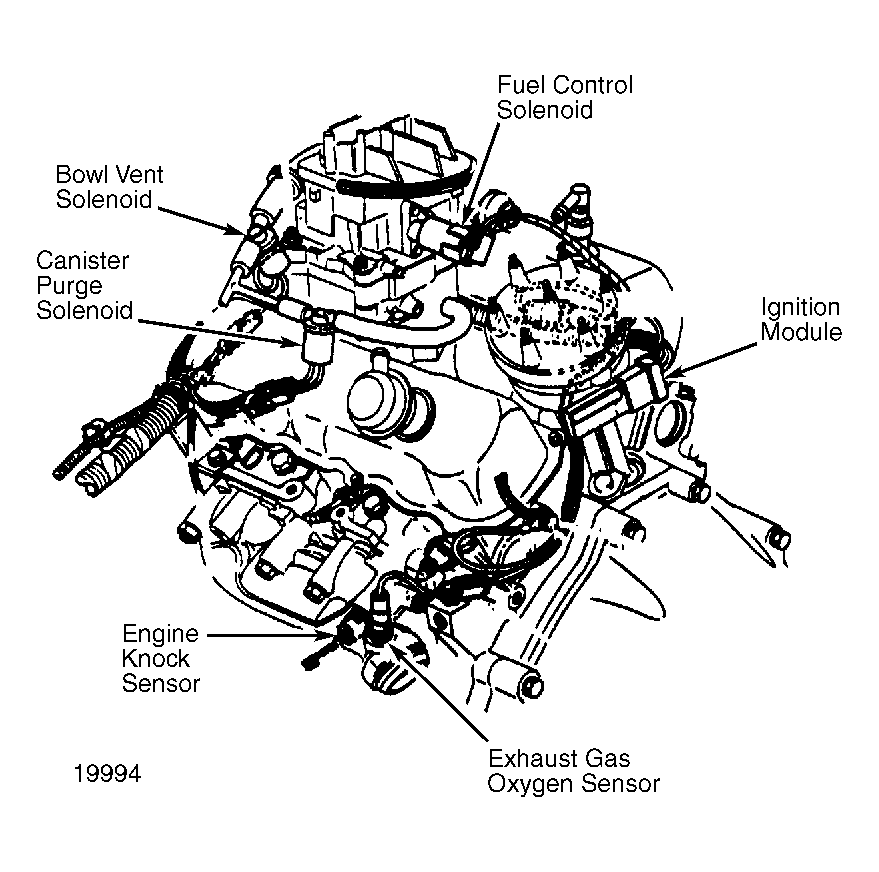

| Ignition Module |
On engine, at base of distributor. See Figure. |
