TFI Module/Map Sensor/Relays New Molded Connectors (84-21-10)

Publication date: 1984-10-09
Reference number: 84-21-10

TFI MODULE/MAP SENSOR/RELAYS NEW MOLDED CONNECTORS

TECHNICAL SERVICE BULLETIN

Reference Number(s): 84-21-10, Date of Issue: October 9, 1984

WIRING - MOLDED WIRE CONNECTOR ASSEMBLIES - SERVICE

APPLICATION

Model(s): FORD: 1984 ALL

LINCOLN-MERCURY: 1984 ALL

FORD LIGHT TRUCKS: 1984 ALL

Group: Accessories & Electrical

Bulletin No.: 84-21-10

Date: October 9, 1984

SERVICE INFORMATION

Three conditions may be encountered relating to the TFI module connector, manifold pressure sensor connector, and relay connectors. The first is that the terminal may not be fully installed into the connector prior to molding. The second is that the wire has broken in the terminal or adjacent to it. The third concern is a broken connector locking retaining tab.

Four (4) molded connectors with eight inch wire leads have been released for service of this concern.

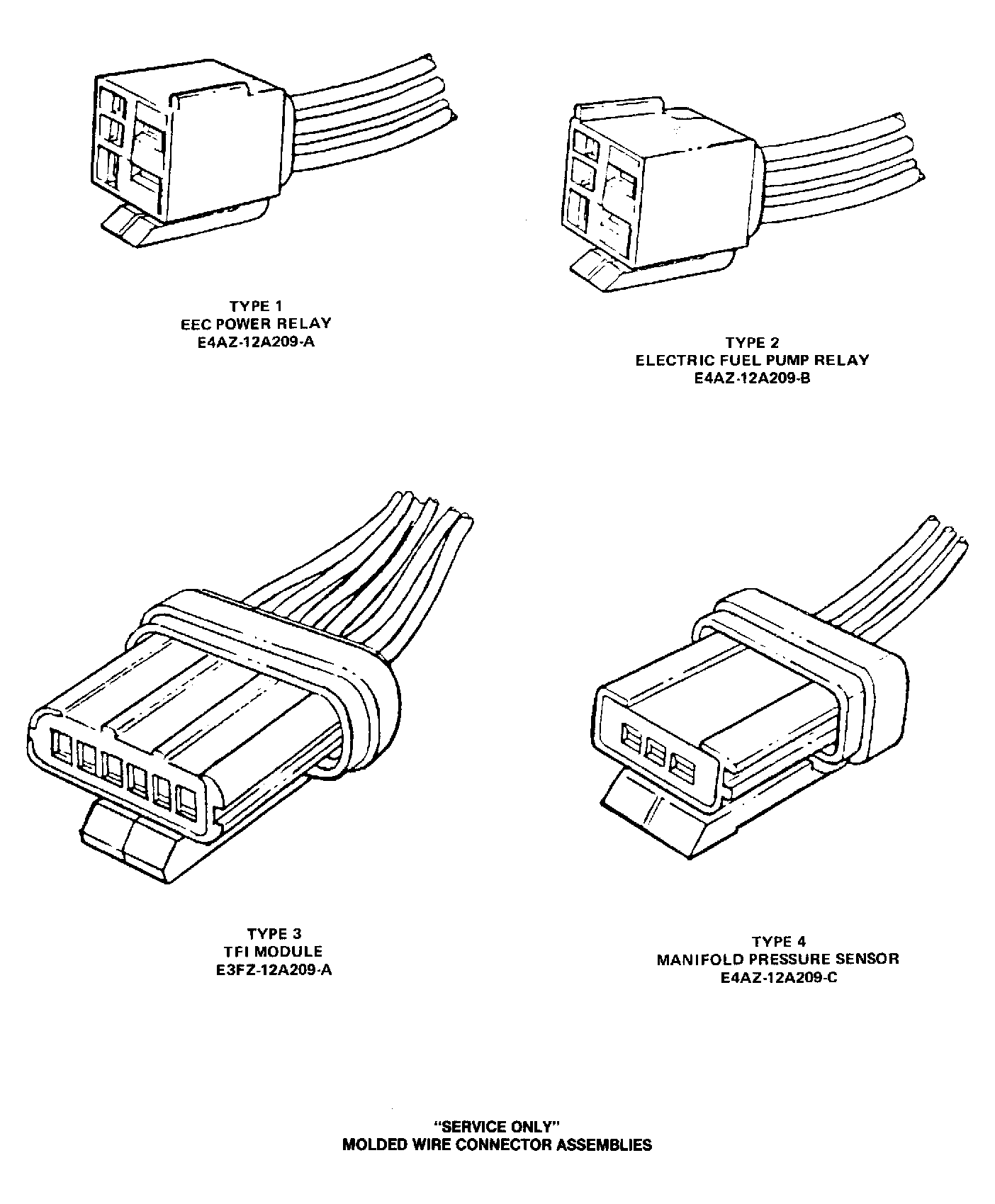

Figure 1 identifies the type of connector and application.

Fig 1: View of Molded Wire Connectors

PARTS INFORMATION

PART NUMBER	PART NAME	CLASS
E4AZ-12A209-A	Wire Connector	C
E4AZ-12A209-B	Wire Connector	C
E4AZ-12A209-C	Wire Connector	C
E3FZ-12A209-A	Wire Connector	C
