Wiring Diagrams

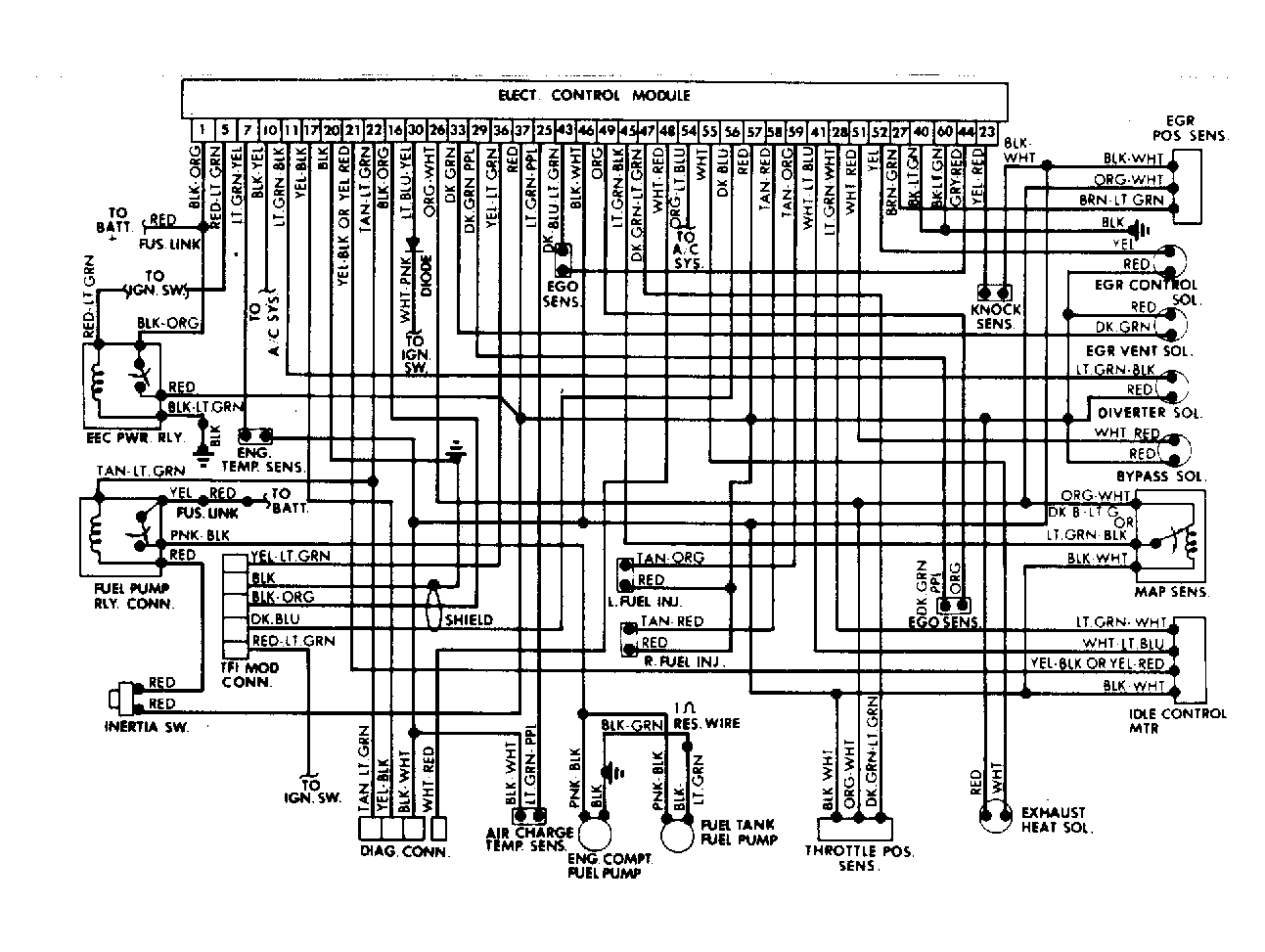

Fig 1: Ford 3.8L V6 EFI (EEC IV) System Wiring Diagram
G1641

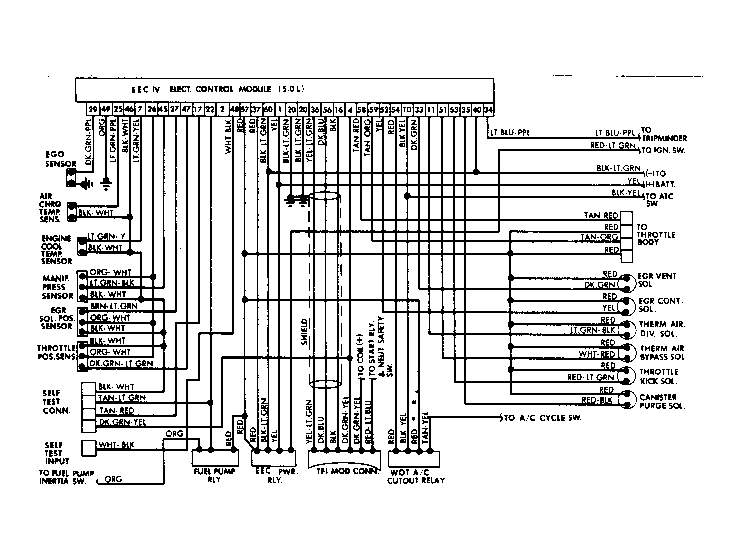

Fig 2: Ford 5.0L V8 EFI (EEC IV) System Wiring Diagram
G1642
