Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| A/C Cooling Fan Control Unit | Attached to shake brace, below steering column. See Figure. |

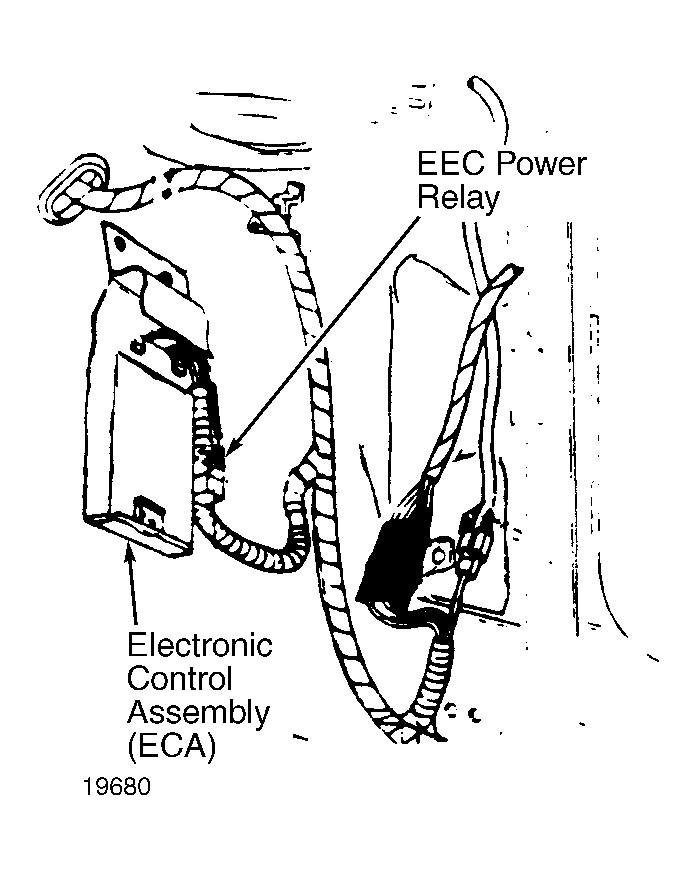

| Electronic Control Assembly (ECA) | On lower right cowl. See Figure. |
| Graphic Warning Module | At top center of console. |
| Low Fuel Warning Module | Behind right side of dash, above glove box. See Figure. |
| Speed Control Amplifier | On left cowl area. See Figure. |
| Upshift Indicator Module | Above brake pedal. |
