Vacuum Diagrams: Identification

Located on front of engine, there is an Engine Code Information label containing engine calibration. Label may be any of several different styles. See Fig 1. Using calibration number and Vacuum Diagram Index, determine which vacuum diagram to use for vehicle being serviced.

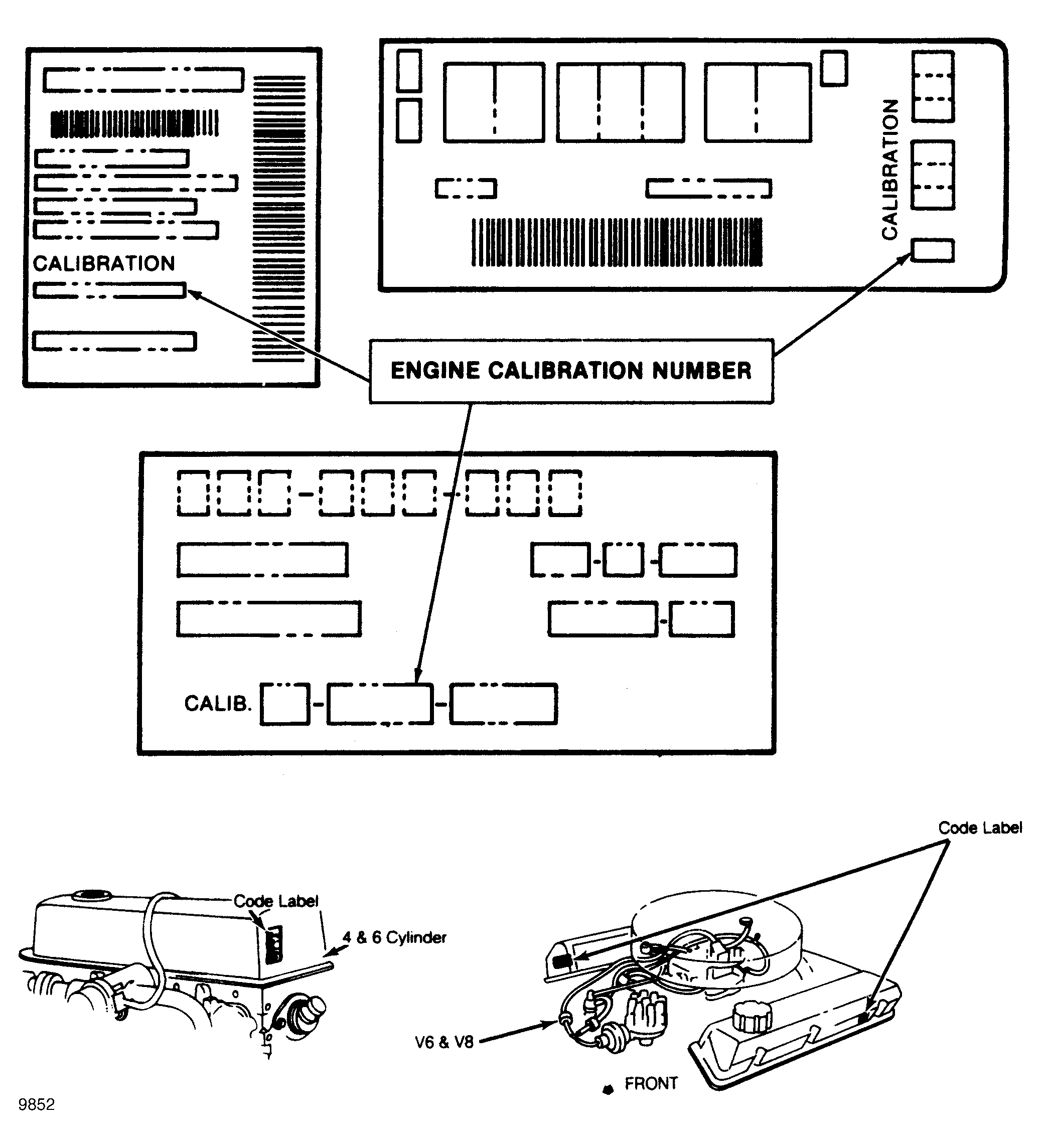

Fig 1: Engine Code Information Label
G9852
CALIBRATION NUMBER INFORMATION

Application Specification
2.0L 4-Cylinder
Model Ranger
Application Fed.
Transmission Man.
A/C X
Non A/C X
Calibration 3-41P-R15
Fig. No. 2
2.0L 4-Cylinder
Model Ranger
Application Fed.
Transmission Man.
A/C X
Non A/C X
Calibration 3-41S-R18
Fig. No. 3
2.3L 4-Cylinder
Model Ranger
Application Fed.
Transmission Man.
A/C X
Non A/C X
Calibration 3-49G-R20 (1)(2) *
Fig. No. 4
2.3L 4-Cylinder
Model Ranger
Application Fed.
Transmission Man.
A/C X
Non A/C X
Calibration 3-49G-R21 (1)(2) *
Fig. No. 5
2.3L 4-Cylinder
Model Ranger
Application Fed.
Transmission Man.
A/C X
Non A/C X
Calibration 3-49H-R17
Fig. No. 6
2.3L 4-Cylinder
Model Ranger
Application Fed.
Transmission Man.
A/C X
Non A/C X
Calibration 3-49H-R18
Fig. No. 7
2.3L 4-Cylinder
Model Ranger
Application Calif.
Transmission Man.
A/C X
Non A/C X
Calibration 3-49S-R16
Fig. No. 6
2.3L 4-Cylinder
Model Ranger
Application Calif.
Transmission Man.
A/C X
Non A/C X
Calibration 3-49S-R17
Fig. No. 6
2.3L 4-Cylinder
Model Ranger
Application Calif.
Transmission Man.
A/C X
Non A/C X
Calibration 3-49T-R20 (1)(2) *
Fig. No. 7
2.3L 4-Cylinder
Model Ranger
Application Calif.
Transmission Man.
A/C X
Non A/C X
Calibration 3-49T-R21 (1)(2) *
Fig. No. 7
2.3L 4-Cylinder
Model Ranger
Application Hi. Alt.
Transmission Man.
A/C X
Non A/C X
Calibration 3-49Y-R20 (1)(2) *
Fig. No. 8
2.3L 4-Cylinder
Model Ranger
Application Hi. Alt.
Transmission Man.
A/C X
Non A/C X
Calibration 3-49Y-R21 (1)(2) *
Fig. No. 8
2.3L 4-Cylinder
Model Ranger
Application Fed.
Transmission Man.
A/C X
Non A/C X
Calibration 3-50H-R18
Fig. No. 9
2.3L 4-Cylinder
Model Ranger
Application Calif.
Transmission Auto
A/C X
Non A/C X
Calibration 3-50S-R18
Fig. No. 9
2.3L 4-Cylinder
Model Ranger
Application Hi. Alt.
Transmission Auto
A/C X
Non A/C X
Calibration 3-50Y-R18
Fig. No. 10
2.8L V6
Model Bronco II, Ranger
Application Fed.
Transmission Man.
A/C X
Non A/C X
Calibration 4-61F-R00
Fig. No. 11
2.8L V6
Model Bronco II, Ranger
Application Fed.
Transmission Man.
A/C X
Non A/C X
Calibration 4-61F-R10
Fig. No. 12
2.8L V6
Model Bronco II, Ranger
Application Fed.
Transmission Man.
A/C X
Non A/C X
Calibration 4-61F-R11
Fig. No. 13
2.8L V6
Model Bronco II, Ranger
Application Calif.
Transmission Man.
A/C X
Non A/C X
Calibration 4-61G-R00
Fig. No. 14
2.8L V6
Model Bronco II, Ranger
Application Fed.
Transmission Man.
A/C X
Non A/C X
Calibration 4-61G-R10
Fig. No. 15
2.8L V6
Model Ranger
Application Fed.
Transmission Man.
A/C X
Non A/C X
Calibration 4-61K-R01
Fig. No. 14
2.8L V6
Model Ranger
Application Fed.
Transmission Man.
A/C X
Non A/C X
Calibration 4-61K-R10
Fig. No. 15
2.8L V6
Model Bronco II, Ranger
Application Calif.
Transmission Man.
A/C X
Non A/C X
Calibration 4-61S-R12
Fig. No. 16
2.8L V6
Model Bronco II, Ranger
Application Fed.
Transmission Auto
A/C X
Non A/C X
Calibration 4-62D-R00
Fig. No. 14
2.8L V6
Model Bronco II, Ranger
Application Fed.
Transmission Auto
A/C X
Non A/C X
Calibration 4-62D-R10
Fig. No. 12
2.8L V6
Model Bronco II, Ranger
Application Fed.
Transmission Auto
A/C X
Non A/C X
Calibration 4-62D-R12
Fig. No. 17
2.8L V6
Model Bronco II, Ranger
Application Calif.
Transmission Auto
A/C X
Non A/C X
Calibration 4-62S-R14
Fig. No. 14
2.8L V6
Model Bronco II, Ranger
Application Calif.
Transmission Auto
A/C X
Non A/C X
Calibration 4-62S-R15
Fig. No. 17
(1) 2WD models.
(2) 4WD models.
