Engine Control Module

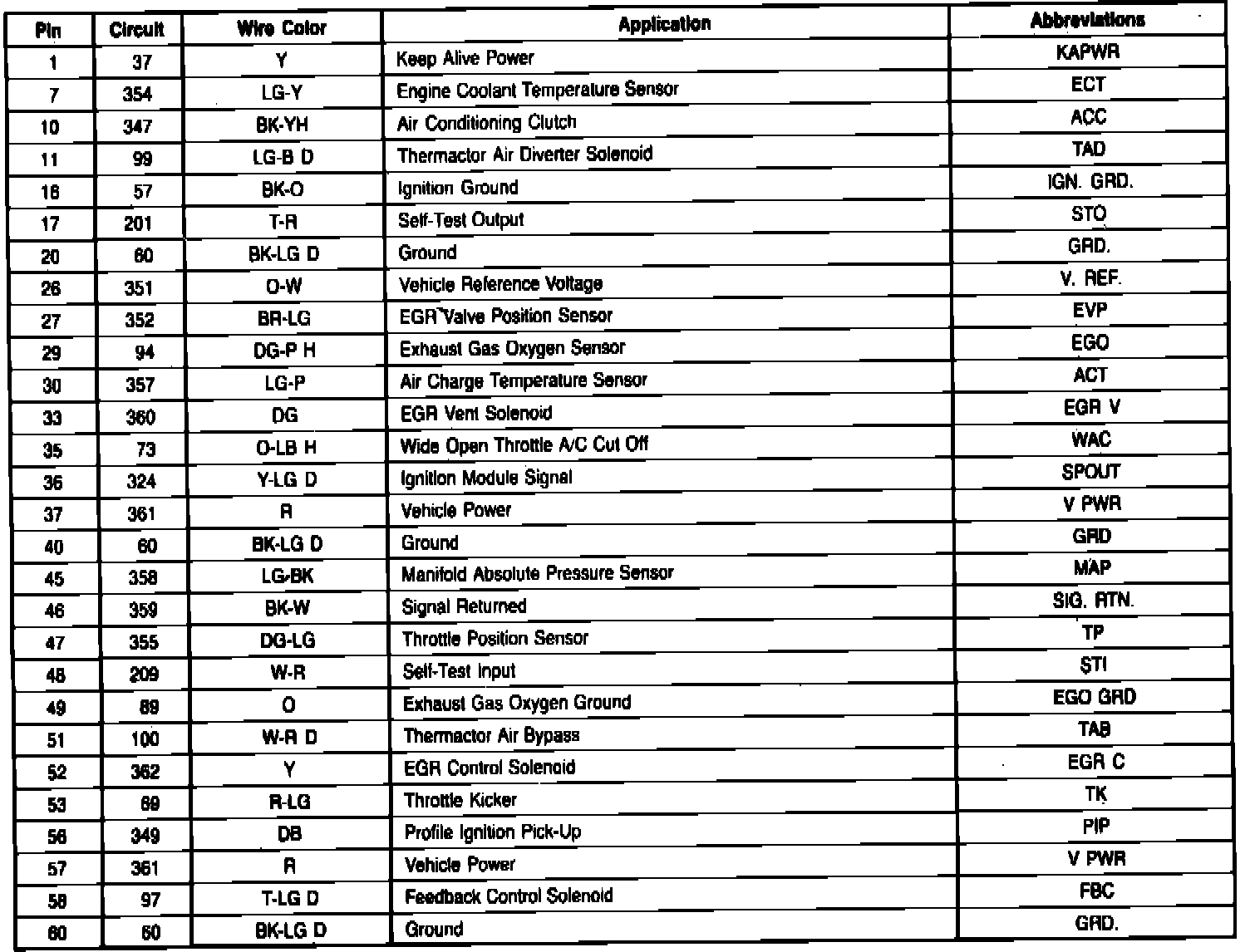

Fig. 61 EEC-IV Module Connector Pin Usage. High Swirl Combustion Engine W/Feedback Carburetor:
