EEC IV Power Relay - Location Correction

83ford6

Article No. 83-22-15


EEC IV POWER RELAY - LOCATION


FORD 1984 TEMPO - ALL

LINCOLN-MERCURY 1984 TOPAZ - ALL

CALIBRATIONS: All

Location of Power Relay incorrectly shown in the Electrical and Vacuum Troubleshooting Manual (EVTM) No. 0334-527-84.

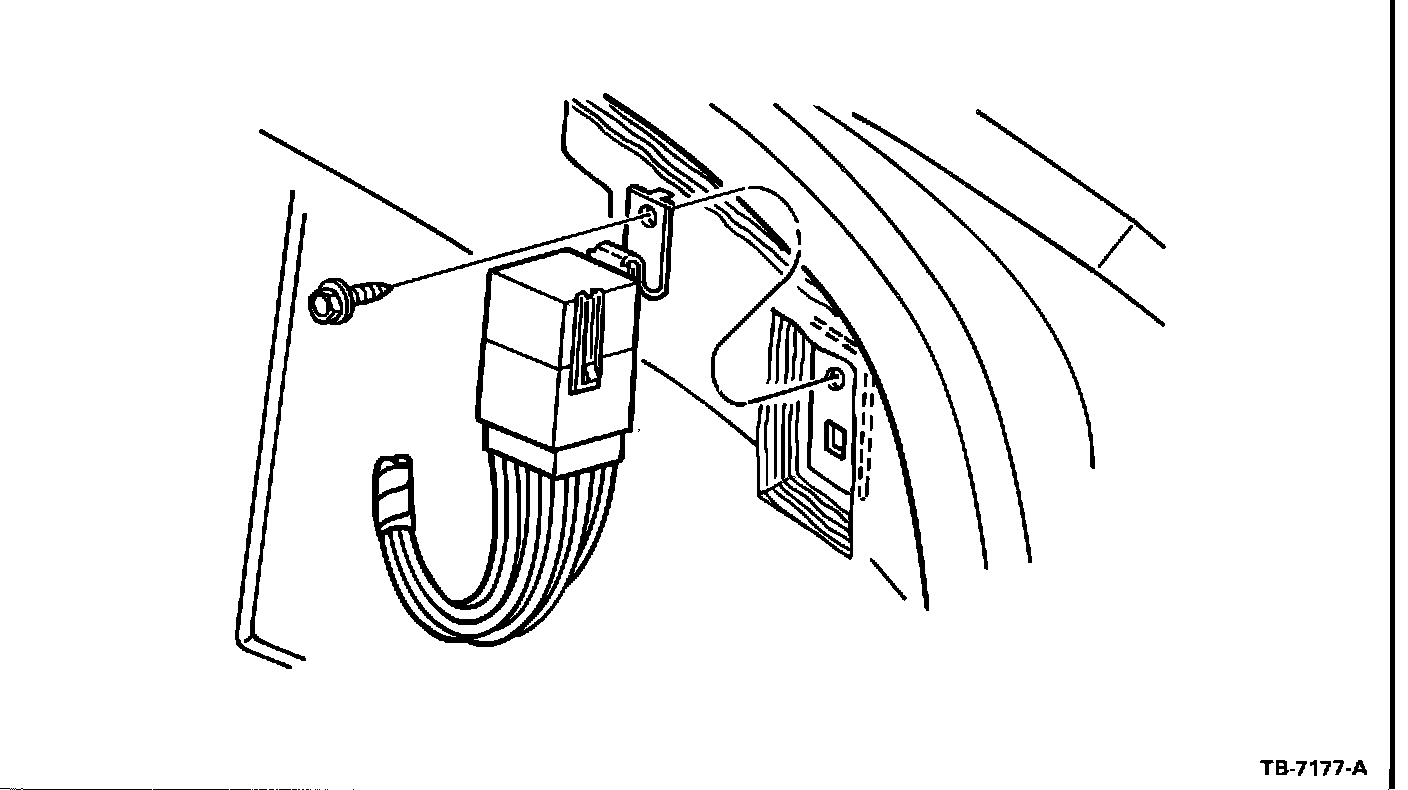

Figure 6:

Figure 2 on page 31 of the 1984 Tempo/Topaz EVTM incorrectly shows the EEC IV power relay attached to the rear of the Electrical Control Assembly Module. The EEC IV relay is attached to the dash panel behind the glove compartment (Figure 6).
OTHER APPLICABLE ARTICLES: None
WARRANTY STATUS: "INFORMATION ONLY"
