Single Switch

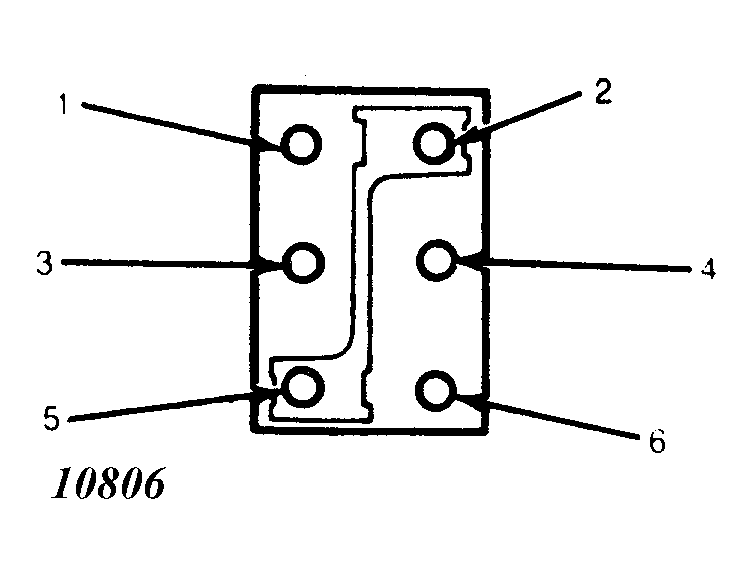

  1. With the switch in the neutral position, use an ohmmeter or self-powered test lamp to test switch. Continuity should exist between terminals No. 1, 2, 3, and 5. Continuity should also exist between terminals No. 4 and 6. See Figure .
  2. With switch pushed downward, continuity should exist between terminals No. 2, 4 and 5. Continuity should also exist between terminals No. 1 and 3. Terminal No. 6 should be disconnected from all other terminals.
  3. With switch pushed upward, there should be continuity between terminals No. 2, 3, and 5. Continuity should also exist between terminals No. 4 and 6. Terminal No. 1 should be disconnected from all other terminals. If switch does not operate as specified, replace switch.
