Miscellaneous Components
MISCELLANEOUS COMPONENTS LOCATION
| Component | Location | |
|---|---|---|

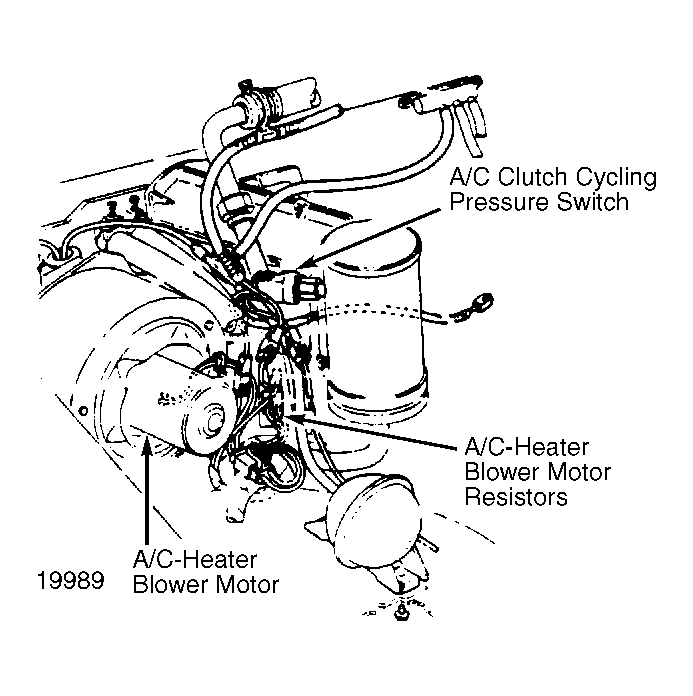

| A/C-Heater Blower Motor Resistors | In engine bay, on right side of firewall. See Figure. | |
| Circuit Breakers | On fuse block. | |
| Fuse Block | Under instrument panel, left of steering column. | |
| Fusible Links | ||
| B, C, P & U | On firewall, at junction block. | |
| D, E, F, G, H, I, J, N, S & T | On right fender apron, at starter relay. | |
| L & M | In wiring harness, on rear of right fender apron. | |
| Hazard Flasher | On fuse block, behind turn signal flasher. | |
| In-Line Diode | In front of cargo lamp, above left rear wheel well. | |
| Power Mirror In-Line Fuse | Under instrument panel, above fuse block. | |
| Radio Choke | Attached to rear of radio. | |

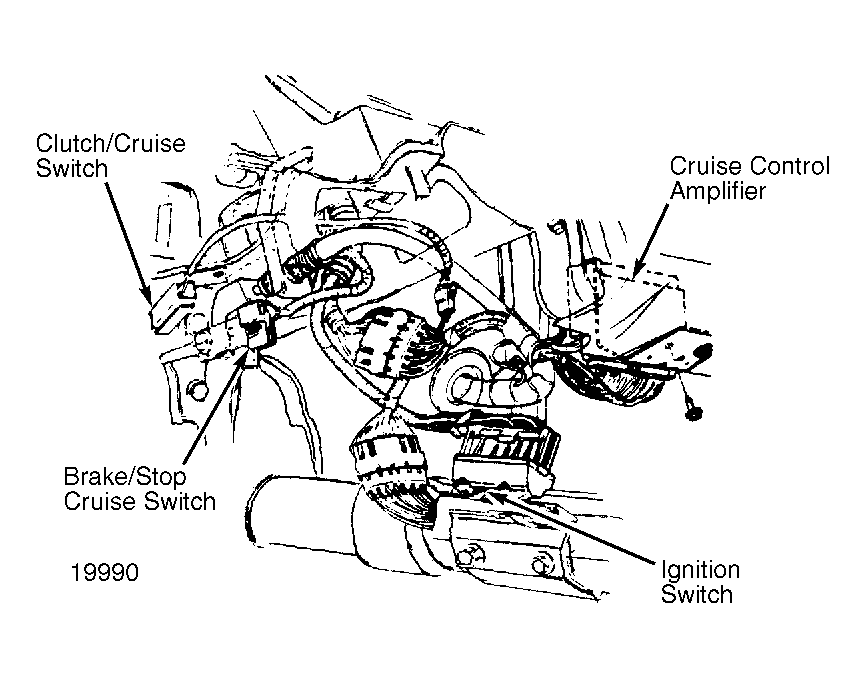

| Speed Control Amplifier | Under instrument panel, right of steering column. See Figure. | |

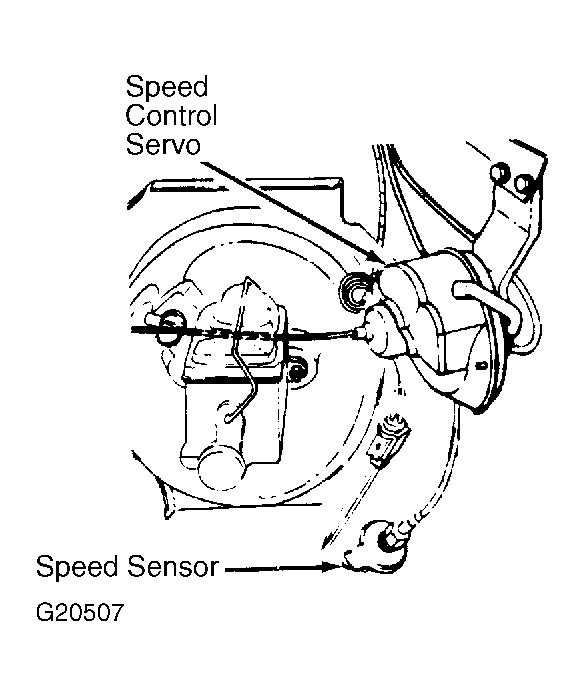

| Speed Control Servo | On left fender apron, near brake master cylinder. See Figure. | |
| Turn Signal Flasher | On fuse block. | |
| Windshield Wiper Interval Governor | Under instrument panel, below wipe/wash switch. | |
