Miscellaneous Components
MISCELLANEOUS COMPONENTS LOCATION
| Component | Location | |
|---|---|---|
| A/C Blower Motor Resistors | Under right side of dash, on evaporator assembly. | |
| Convertible Top Circuit Breaker | Under instrument panel, to right of steering column. | |
| Door Lock Circuit Breaker | In cavity 12 of fuse block. See Figure. | |

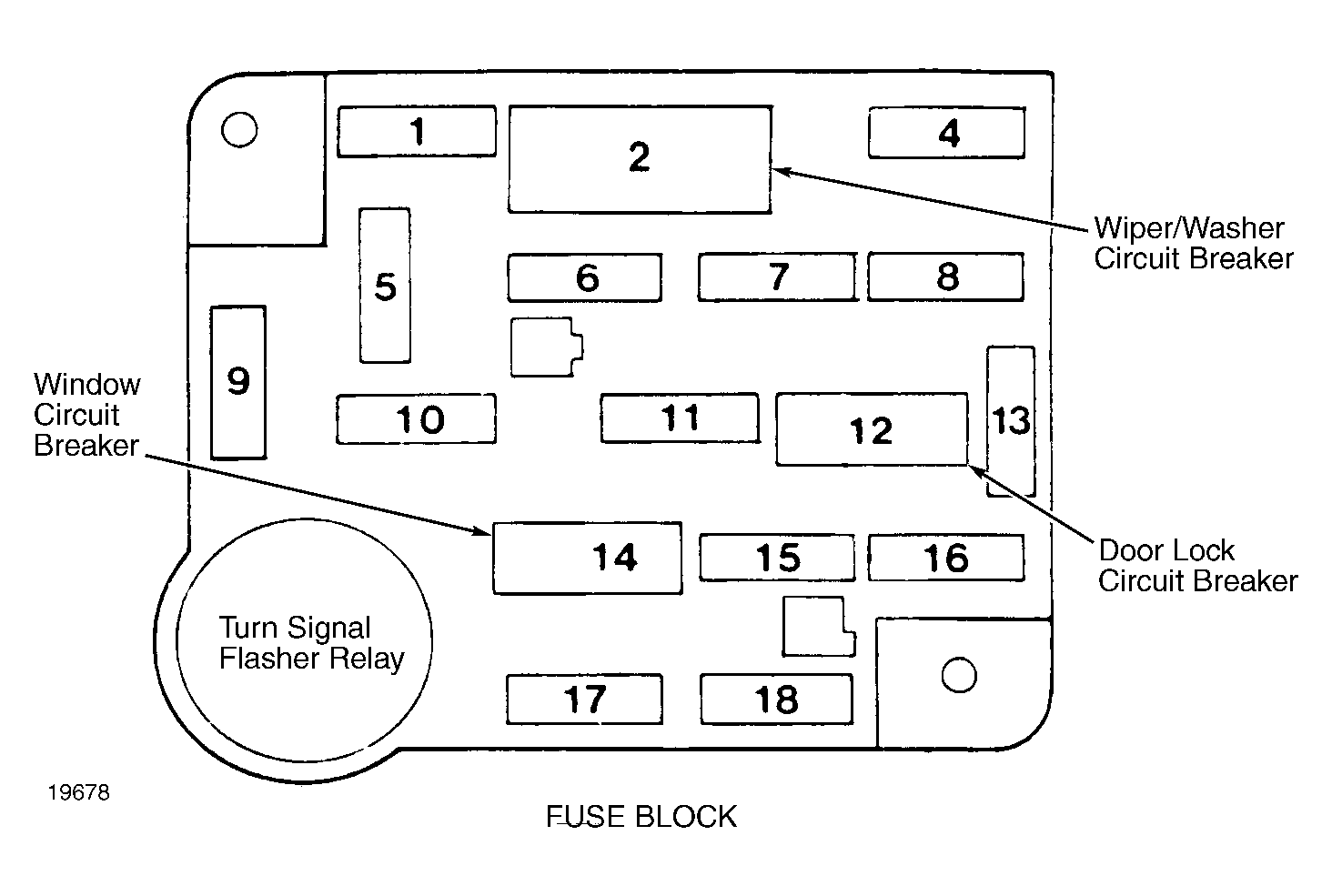

| Fuse Block | On left lower side of dash, behind cover. See Figure. | |
| Fusible Links | ||

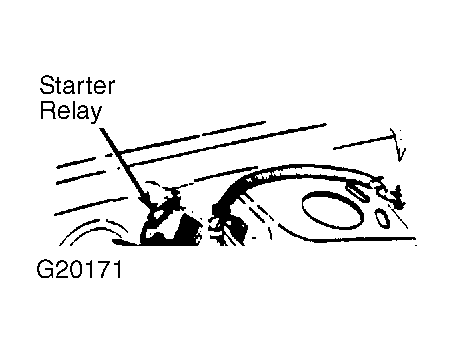

| A (Green) To Ammeter | Near starter relay. See Figure. | |
| B (Black) To Fuse Block | Near starter relay. See Figure. | |
| C (Black) To Ignition Switch | Near starter relay. See Figure. | |
| D (Black) To Rear Defrost | Near starter relay. See Figure. | |
| H (Brown) To Cool. Fan Control | Near starter relay. | |
| J (Blue) To Engine Comp. Light | Near starter relay. | |
| L (Blue) To Upshift Indicator | Near left shock tower. | |
| N (Blue) To Voltage Regulator | Near starter relay. | |
| P (Blue) To ECA | Near starter relay. | |
| Q (Brown) To Fuel Pump Relay | Near starter relay. | |
| R (Blue) To Oxygen Sensor | Near starter relay. | |
| W (Brown) EEC Power Relay | Near starter relay. | |
| Z (Blue) To Fog Lamps | Near starter relay. | |
| Heater Blower Motor Resistors | Under right side of dash, near blower motor. | |
| Speed Control Vacuum Dump Valve | Attached to top of brake pedal support. | |
| Speed Control Servo | Attached to left door pillar, under fender. | |
| Turbo Indicator Diodes | ||
| Diode 1 | In wiring harness, near connector to overboost buzzer. | |
| Diode 2 | In wiring harness, near radio receiver. | |
| Upshift Indicator Resistor | In wiring harness, near dimmer relay. | |
| Vane Airflow Meter | Inside right front fender apron. | |
| Power Window Circuit Breaker | In cavity 14 of fuse block. See Figure. | |

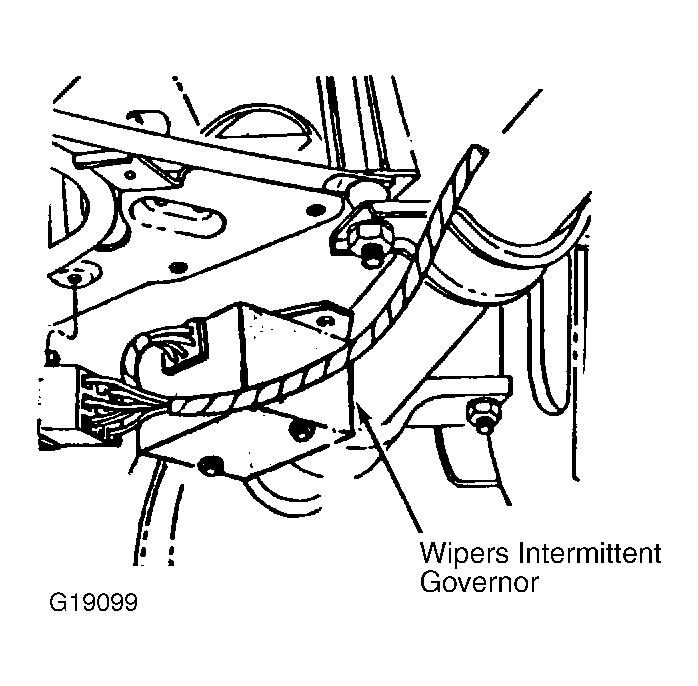

| Wiper Interval Governor | On left side of steering column, on brace. See Figure. | |
| Wiper/Washer Circuit Breaker | In cavity 2 of fuse block.See Figure. | |
