Engine Control Module

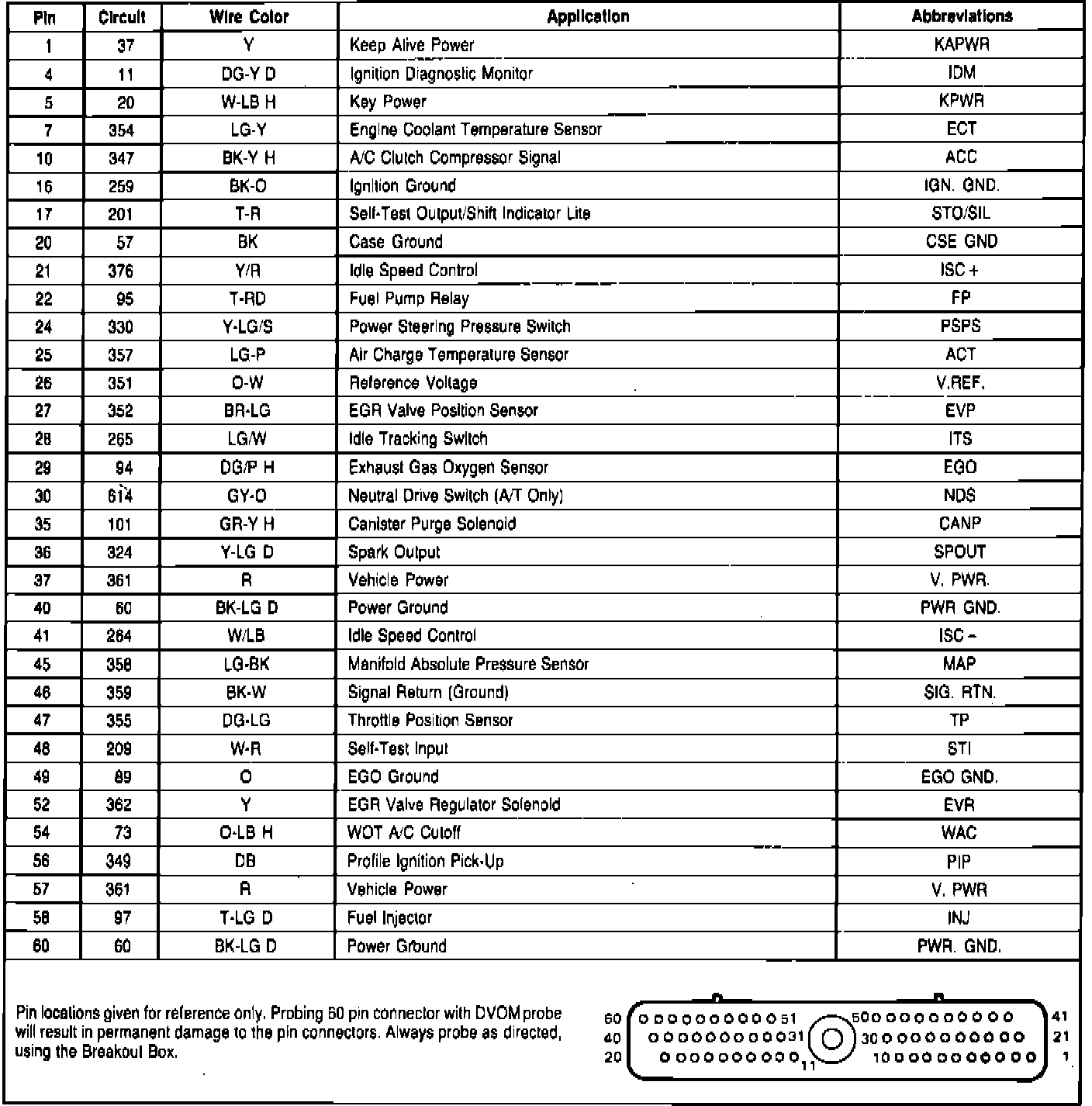

Fig. 159 EEC-IV module connector pin usage. 1985 4-140 high swirl combustion (HSC) engine W/CFI:
