EEC IV Power Relay - Shop Manual Revisions/Updates

85ford15

Article No.
85-15-5

07/31/85


EEC IV POWER RELAY - SHOP
MANUAL REVISIONS/UPDATES

FORD
1985 EEC EQUIPPED VEHICLES

LINCOLN-MERCURY
1985 EEC EQUIPPED VEHICLES








The following updates the 1985 Volume C and Volume H Shop Manual information regarding the EEC Power Relay Location and Pin-out.

Vehicles Affected

^ Pin-out revisions (Volume H)
All 1985 EEC equipped vehicles.

^ Revised Relay Location (Volume C)
All 1985 Tempo/Topaz vehicles.

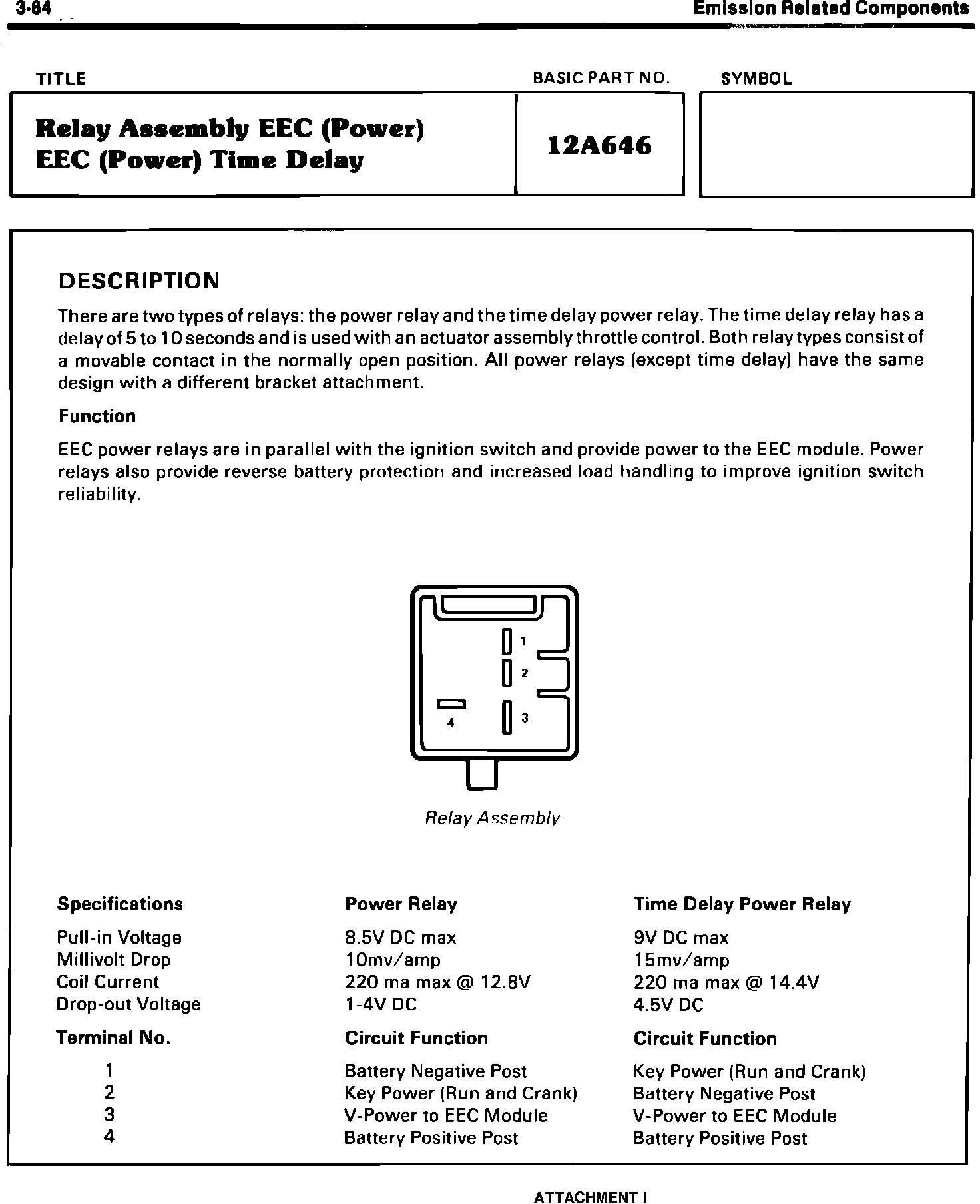

Attachment I reflects the necessary changes to Volume H, Section 3-64 revising the EEC Power Relay Pin-out.

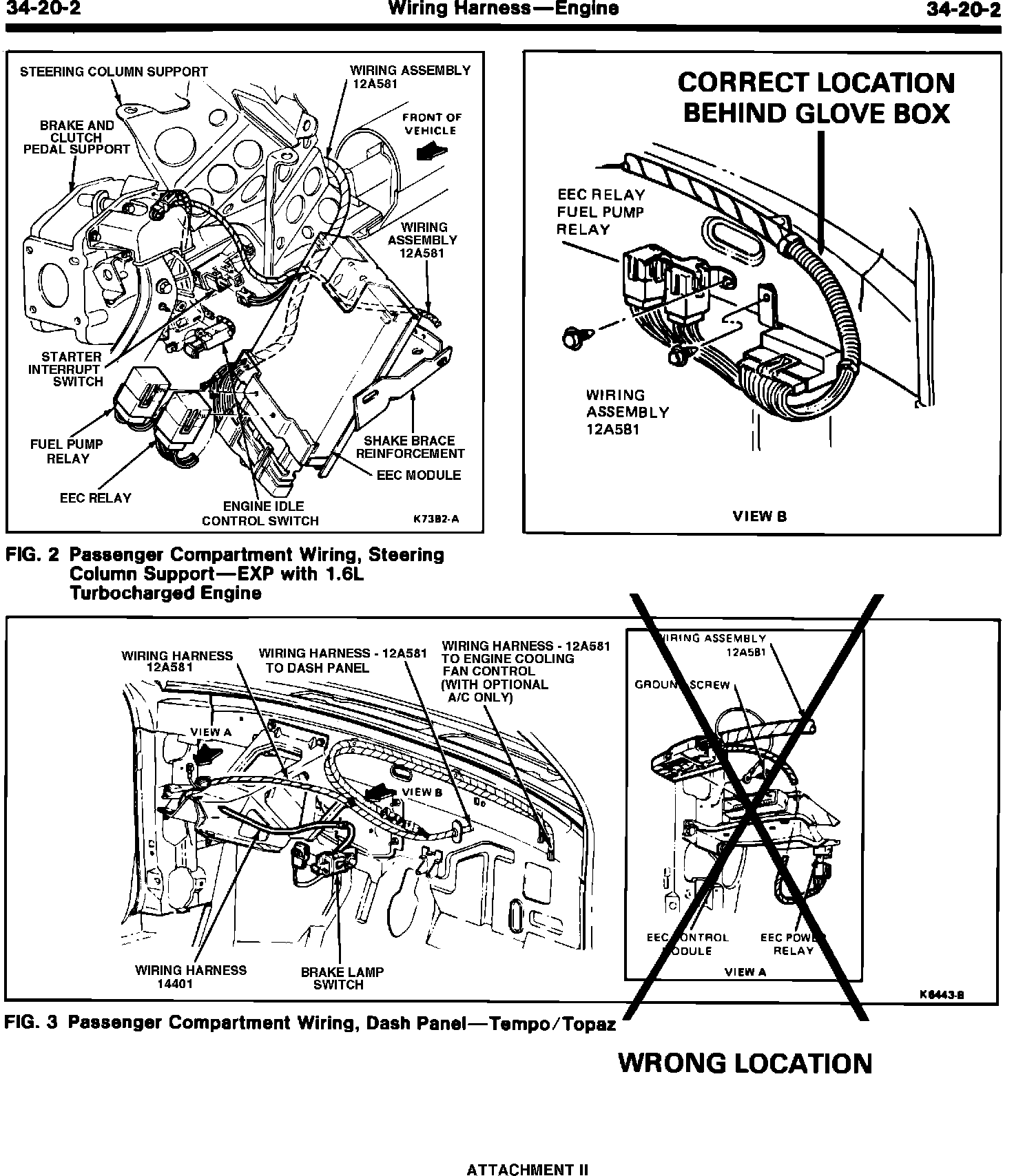

Attachment II illustrates the correct location of the EEC power relay which is behind the glove box. Originally, the 1985 Car Shop Manual, Volume C, Section 34-20-2, showed the EEC power relay location adjacent to the EEC control module.

OTHER APPLICABLE ARTICLES: None
WARRANTY STATUS: "INFORMATION ONLY"
