Component Testing

^ Dual switch assembly shown.


^ Attaching brackets vary according to installation requirements.


^ Connectors may vary.

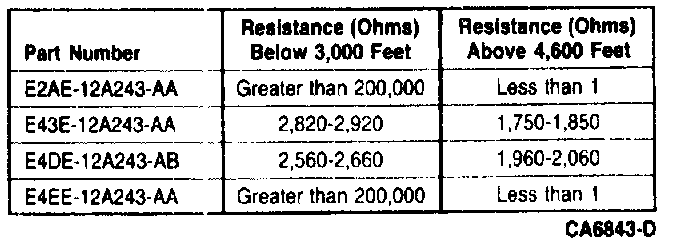

Either resistance value is correct if altitude is between 3,000 and 4,600 feet.
