Ignition Control Module: Locations

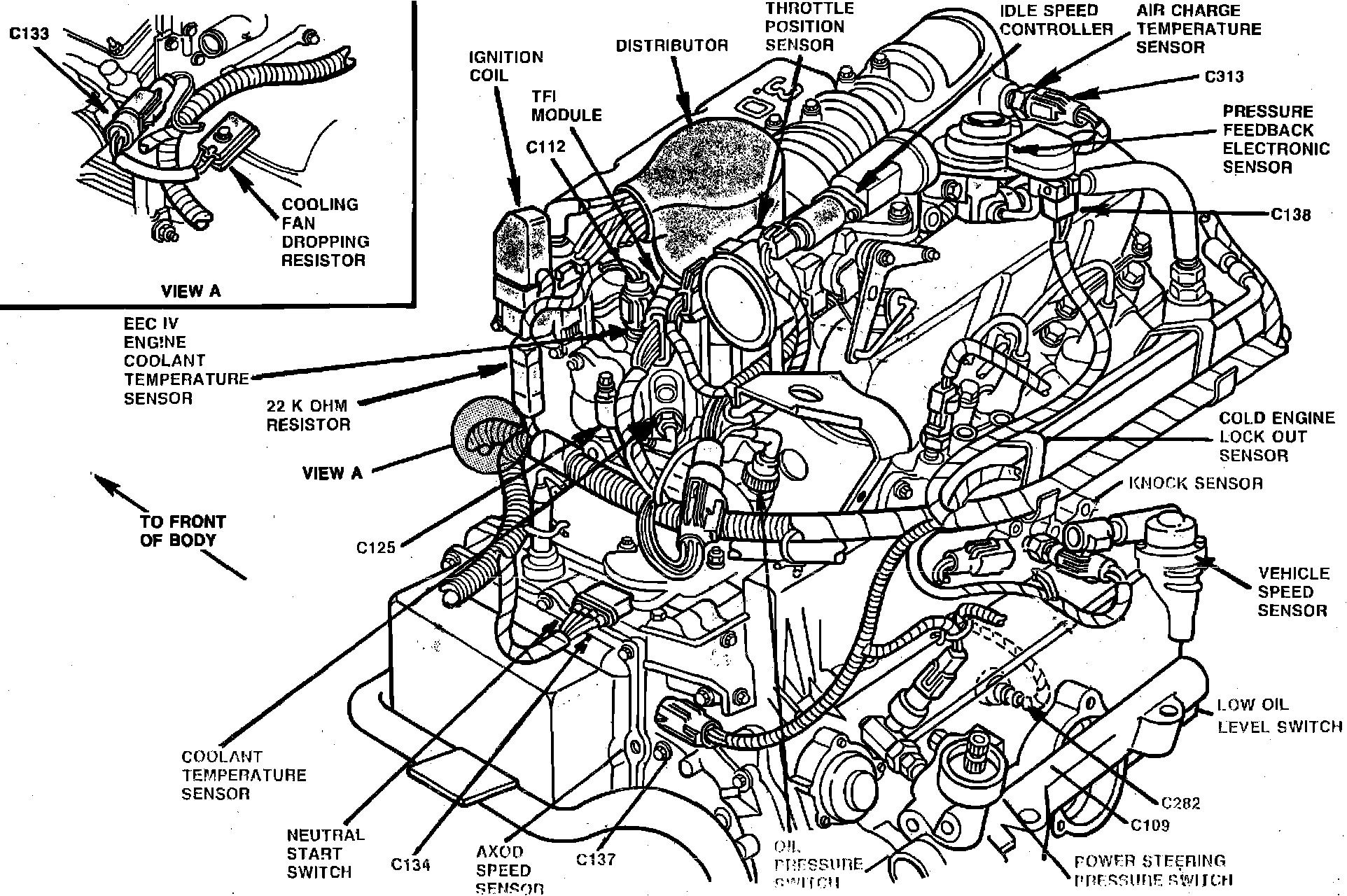

Engine Compartment Wiring, Rear.:

Connected To RH Side Of Distributor

Applicable to: 1986 Models w/3.0L EFI Engine
