Single Switch: Bronco

  1. Position switch so that raised portion of switch knob is to right, with terminals toward you. See Fig 1 . With switch in the released (neutral) position, continuity should exist between terminals No. 1 and 2, and between terminals No. 3 and 4. Terminal No. 5 should be disconnected from all other terminals.
  2. With the raised portion of the switch pushed (closed position), continuity should exist between terminals No. 1 and 5, and between terminals No. 3 and 4. Terminal No. 2 should be disconnected from all other terminals.
  3. With the depressed portion of the switch pushed (open position), continuity should exist between terminals No. 1 and 2, and between terminals No. 4 and 5. Terminal No. 3 should be disconnected from all other terminals. If switch does not operate as specified, replace switch.

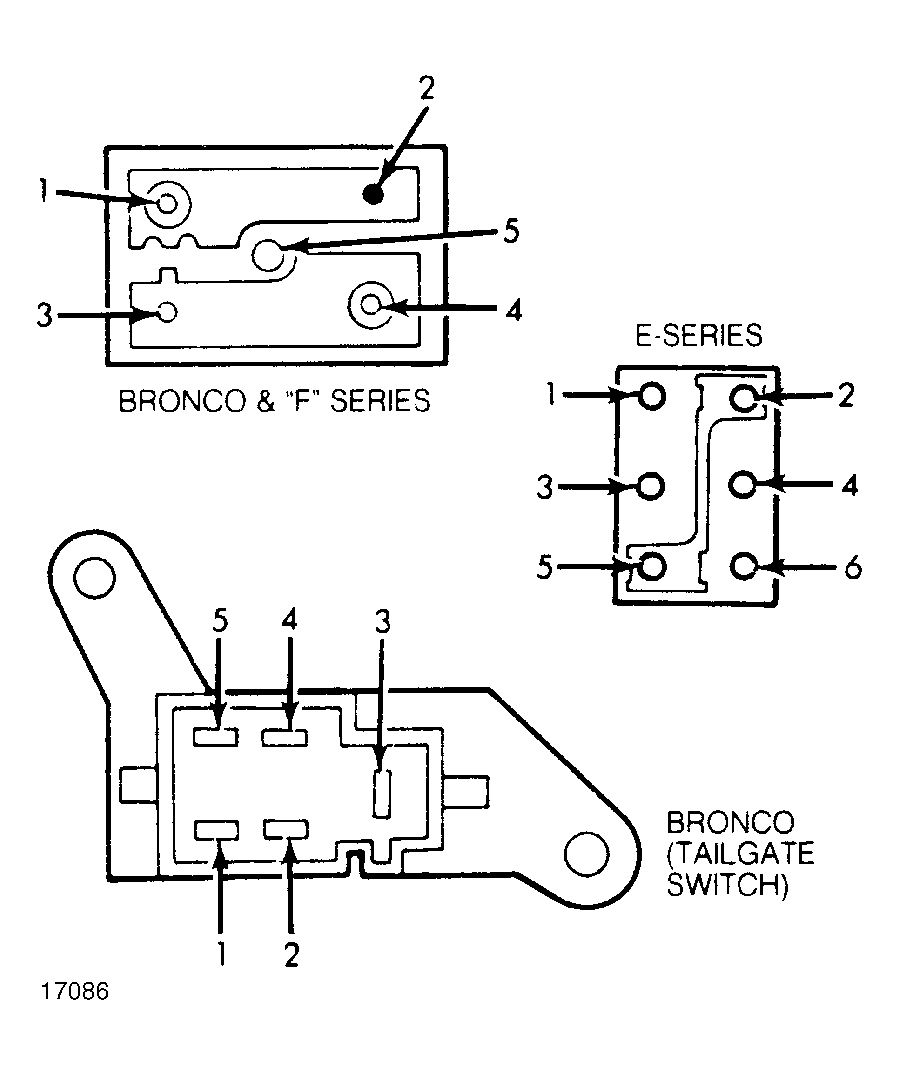

Fig 1: Single Switch Pin Locations
G17086Courtesy of FORD MOTOR CO.
