Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| ABS Control Module | Behind instrument panel, left of center. |
| ABS Module | Behind center of dash. |

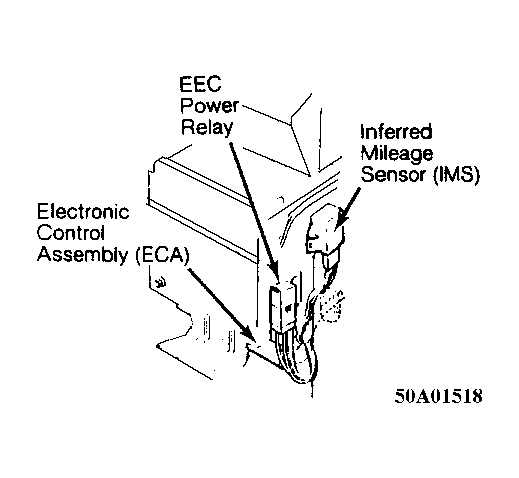

| Electronic Control Assembly (ECA) | Behind left side kick panel. See Figure. |
| Throttle Kicker Module | Under left side of dashboard. |

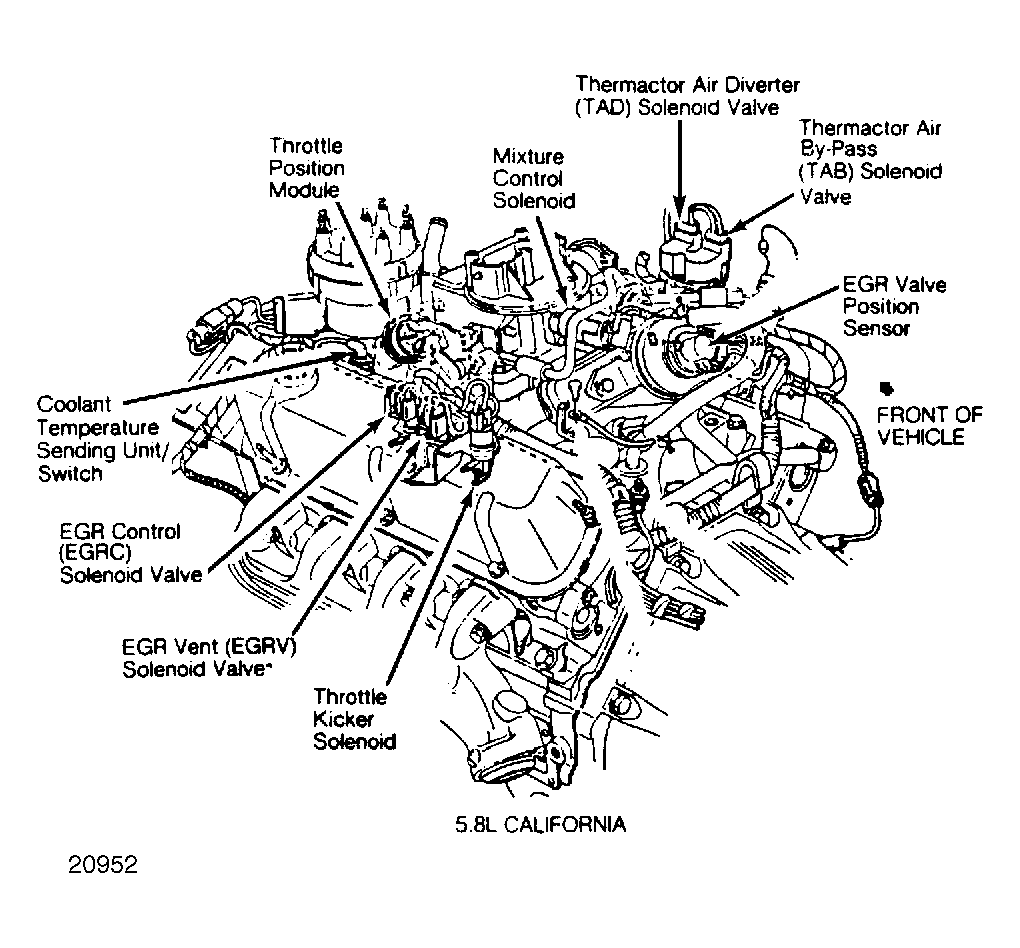

| Throttle Position Module (5.8L) | On left front side of carburetor. See Figure. |
