Control Panel Assembly Replace

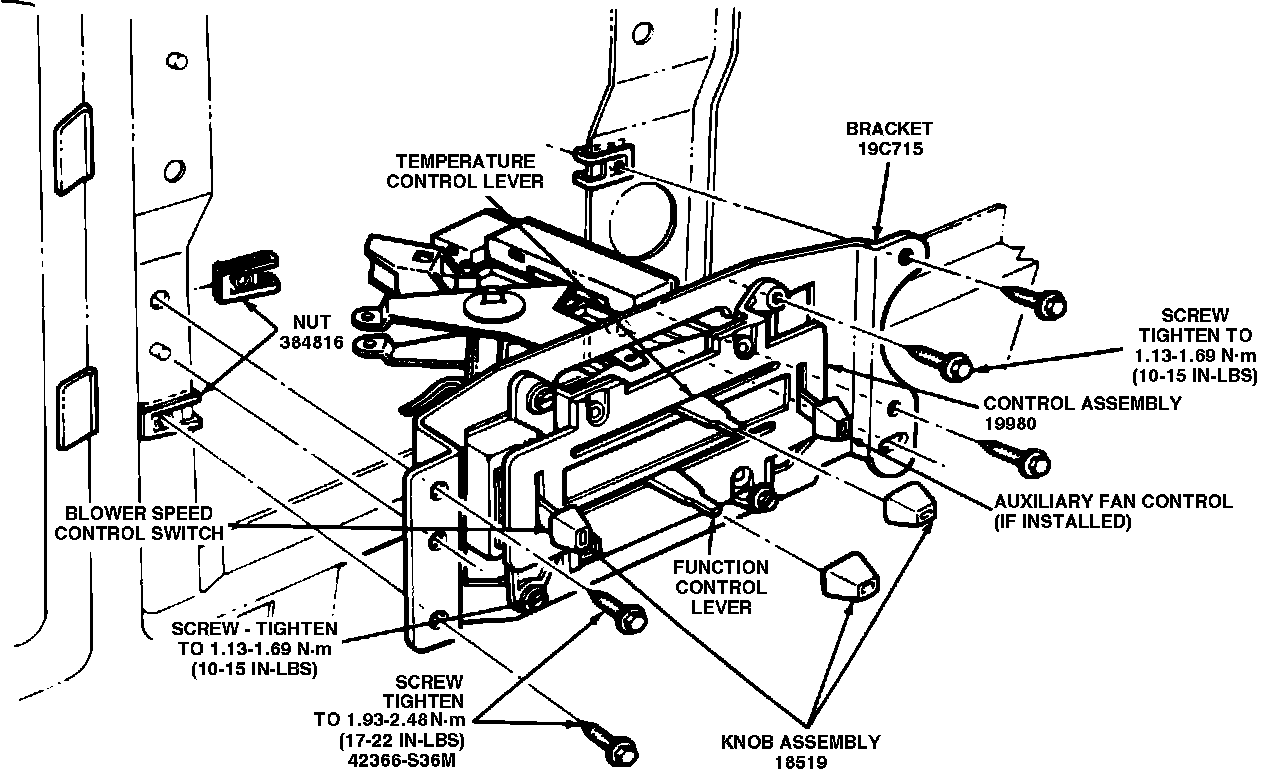

Fig. 8 Control assembly removal:

1. Remove knobs from control assembly levers.
2. Remove applique.
3. Remove control assembly from mounting bracket, Fig. 8.
4. Carefully pull control assembly from opening in mounting bracket and disconnect control cables, wiring connectors and vacuum harness from control assembly.
5. Reverse procedure to install.
