System Specifications

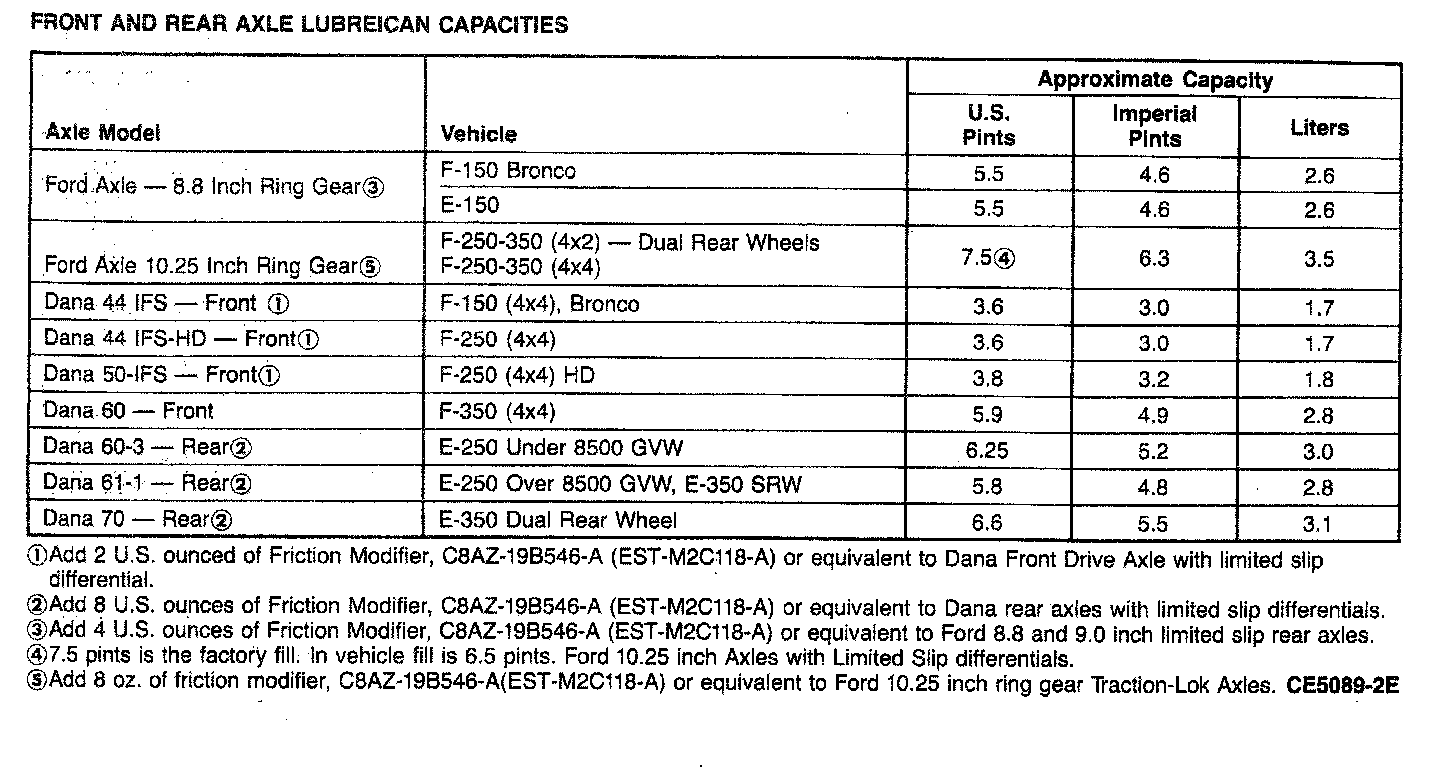

Front and Rear lubrication Capacities

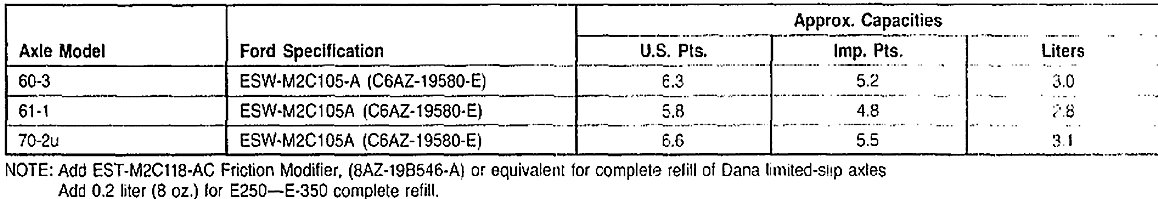

Axle Model 60-3, 61-1 and 70-2u

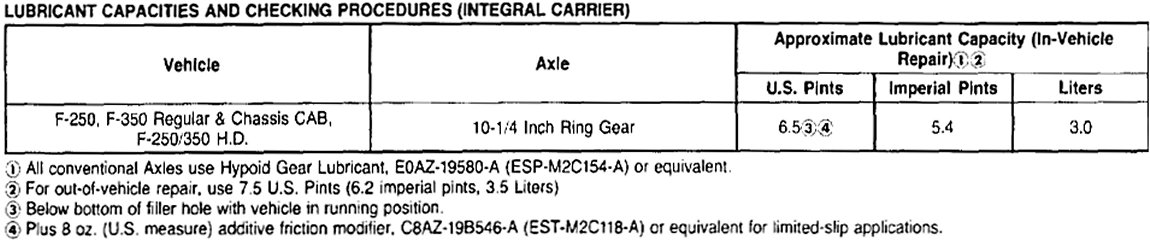

10 1/4 Inch Ring Gear

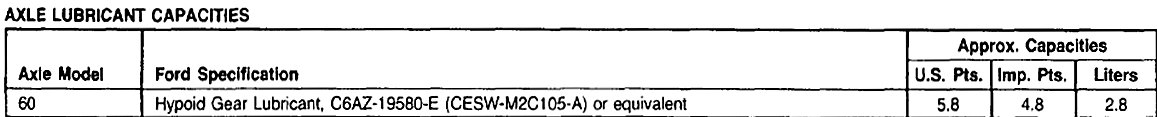

Axle Model 60

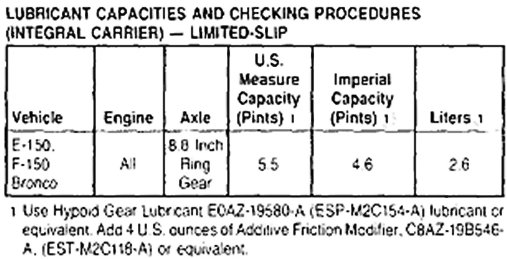

Integral Carrier Limited Slip
