Control Module HVAC: Service and Repair

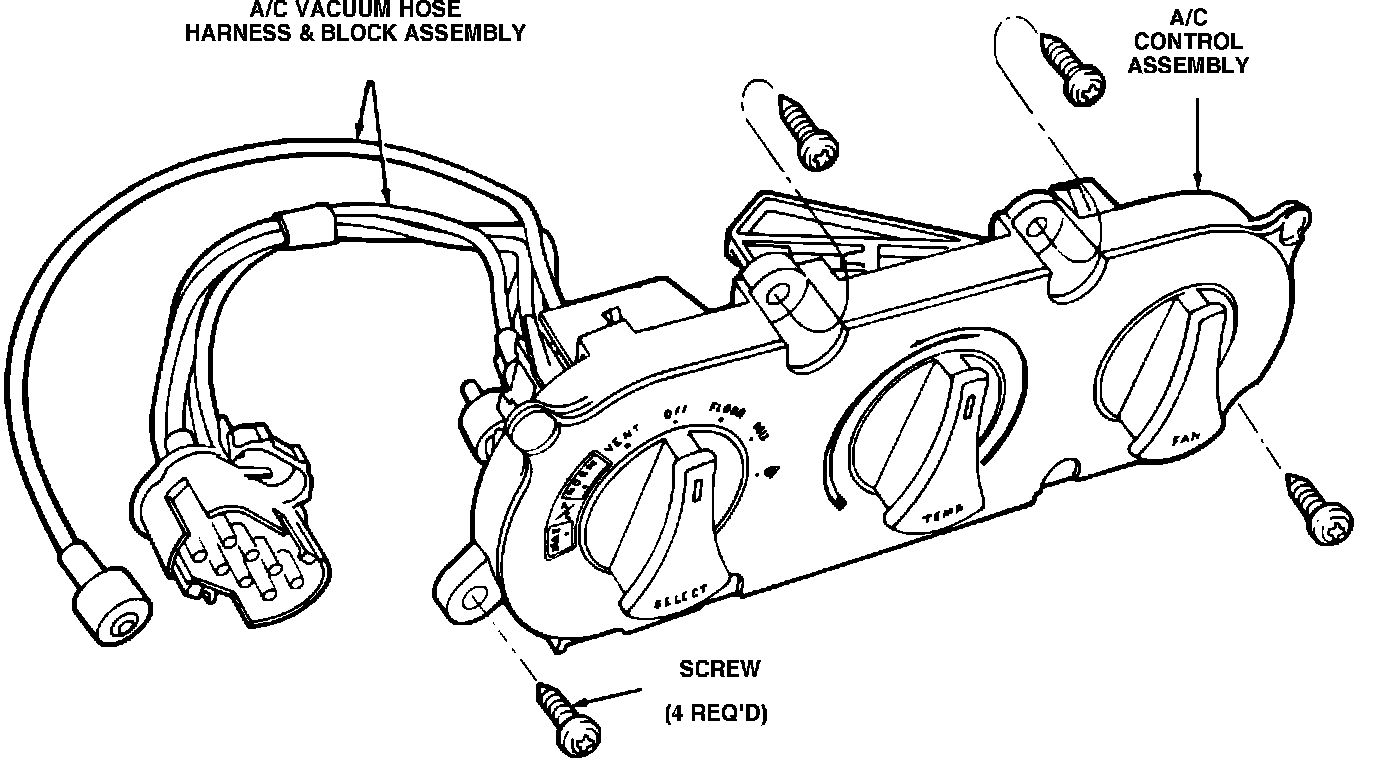

Fig. 13 Control panel removal:

1. Disconnect battery ground cable.
2. Remove floor console snap-in trim molding to gain access to control panel attaching screws.
3. Remove control panel attaching screws, Fig. 13.
4. Pull control panel out of console and disconnect electrical connectors, vacuum lines and temperature control cable.
5. Remove control panel from vehicle.
6. Reverse procedure to install.
