Pinpoint Tests

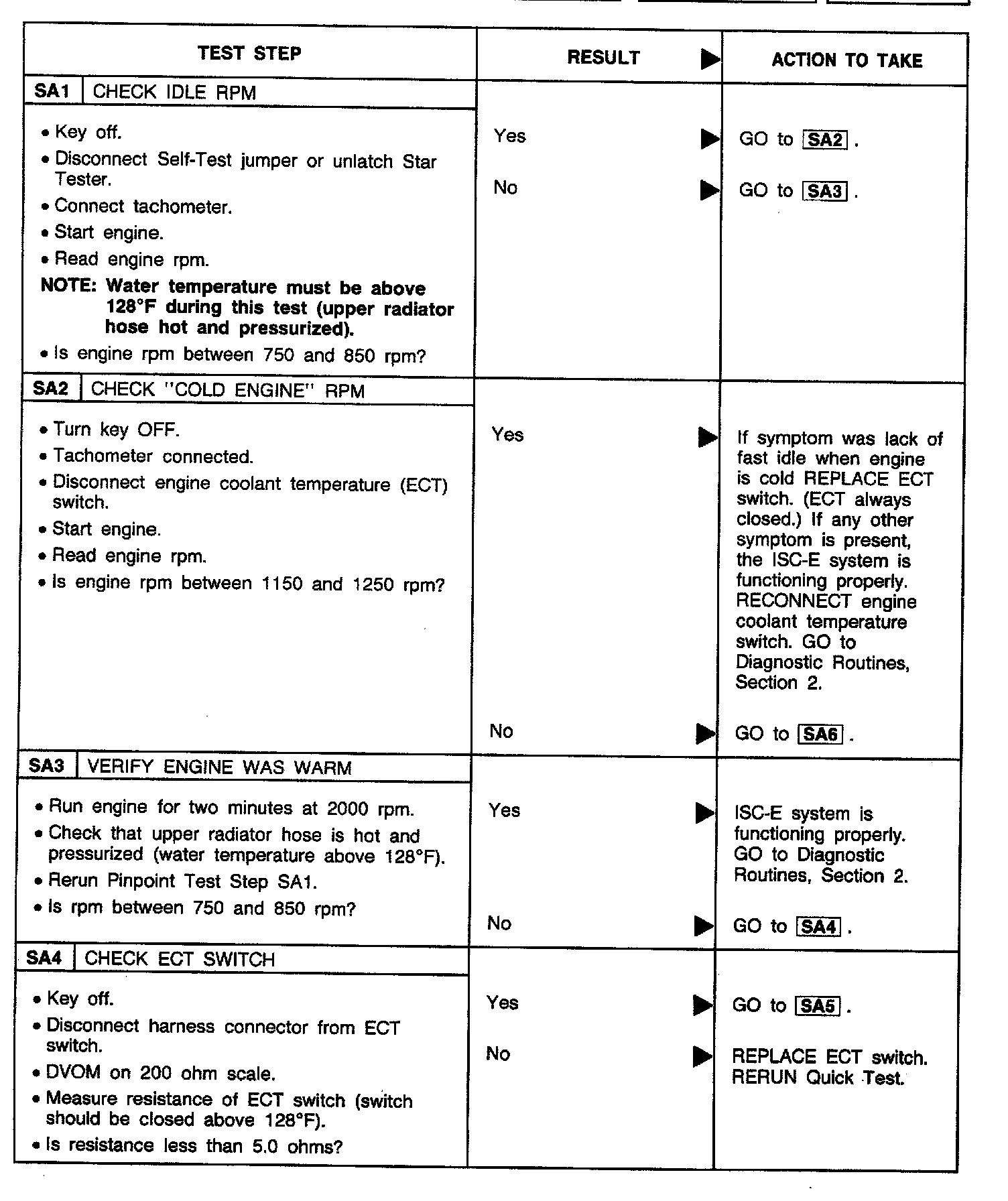

SA1 - SA4:

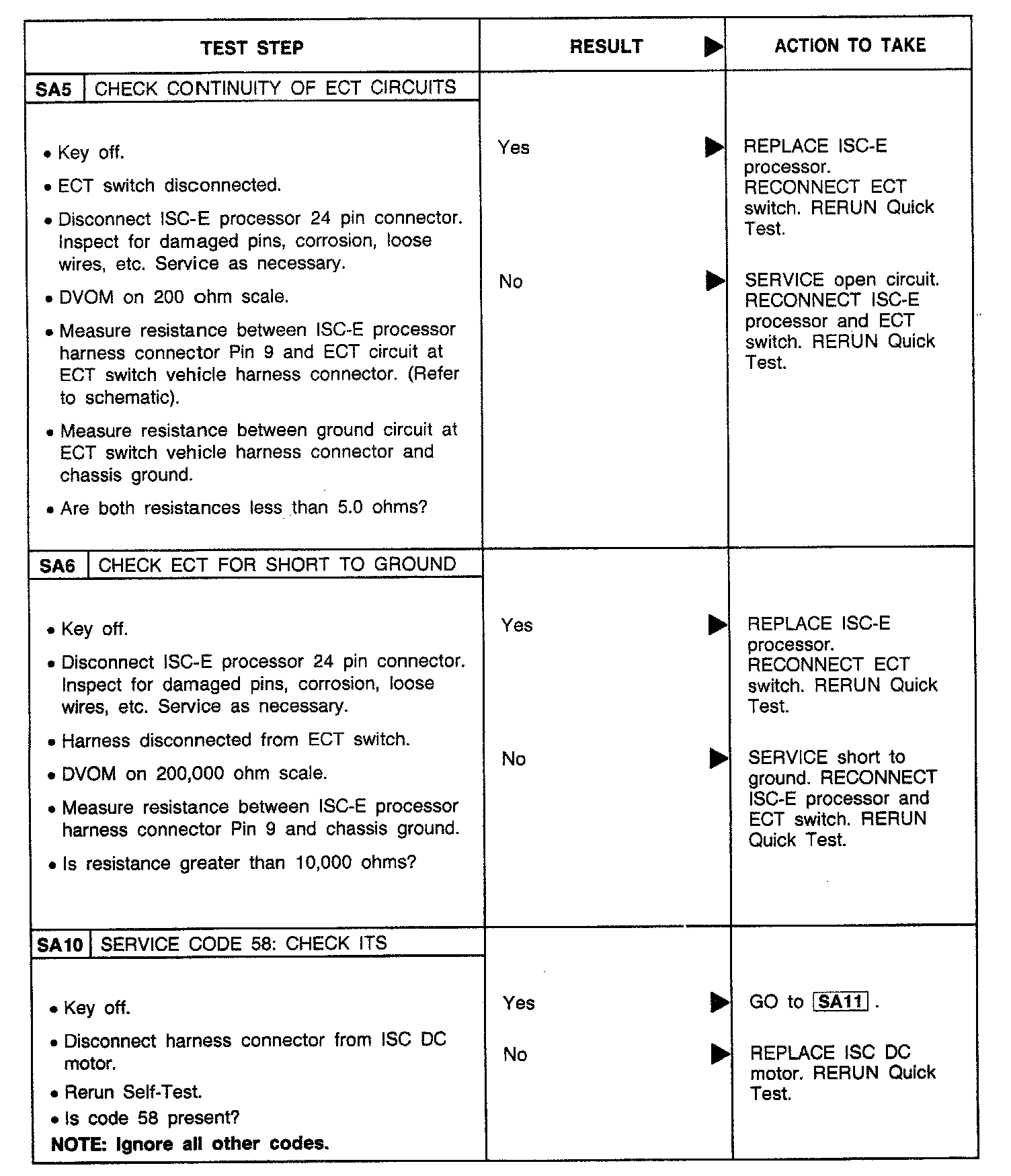

SA5 - SA10:

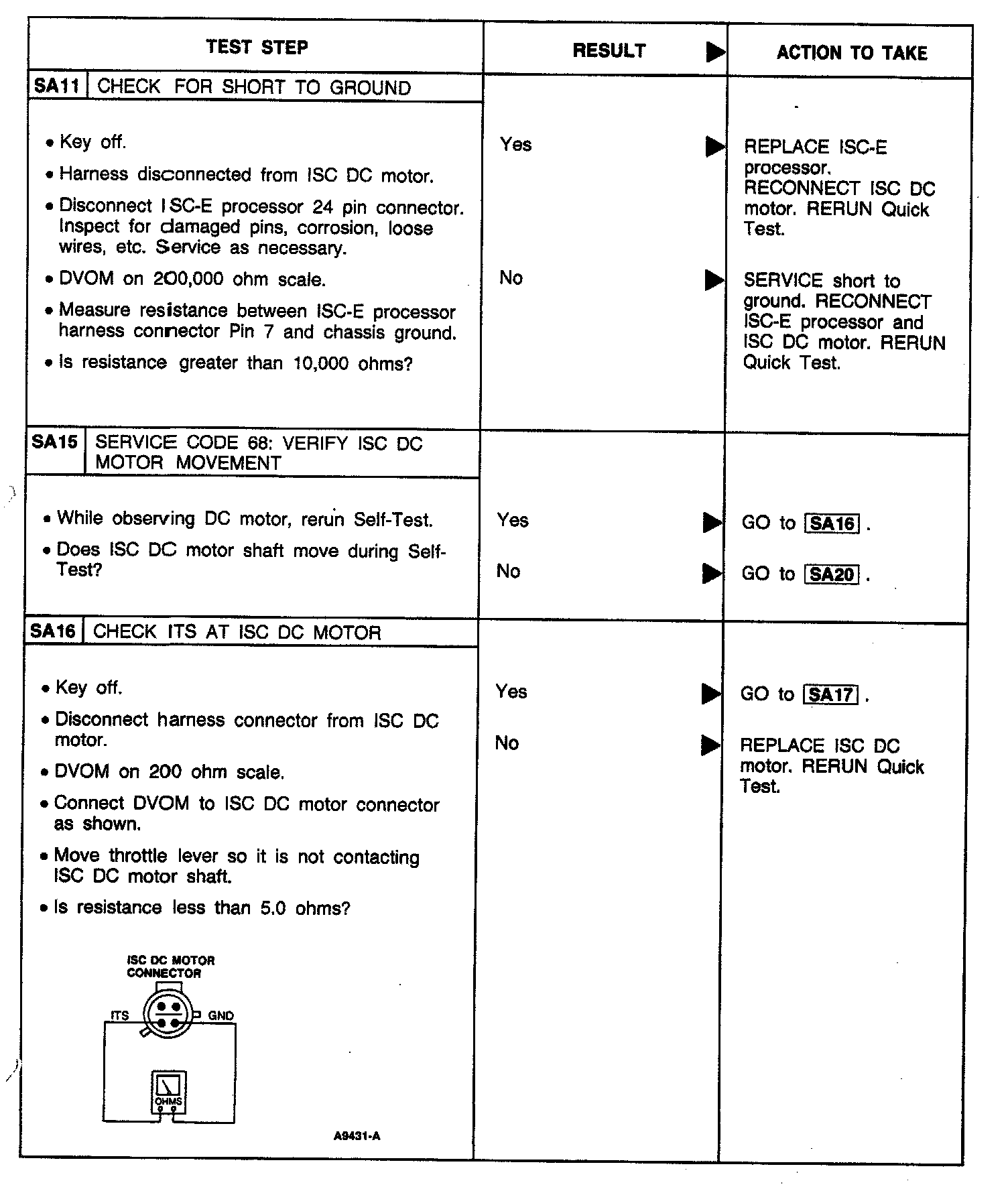

SA11 - SA16:

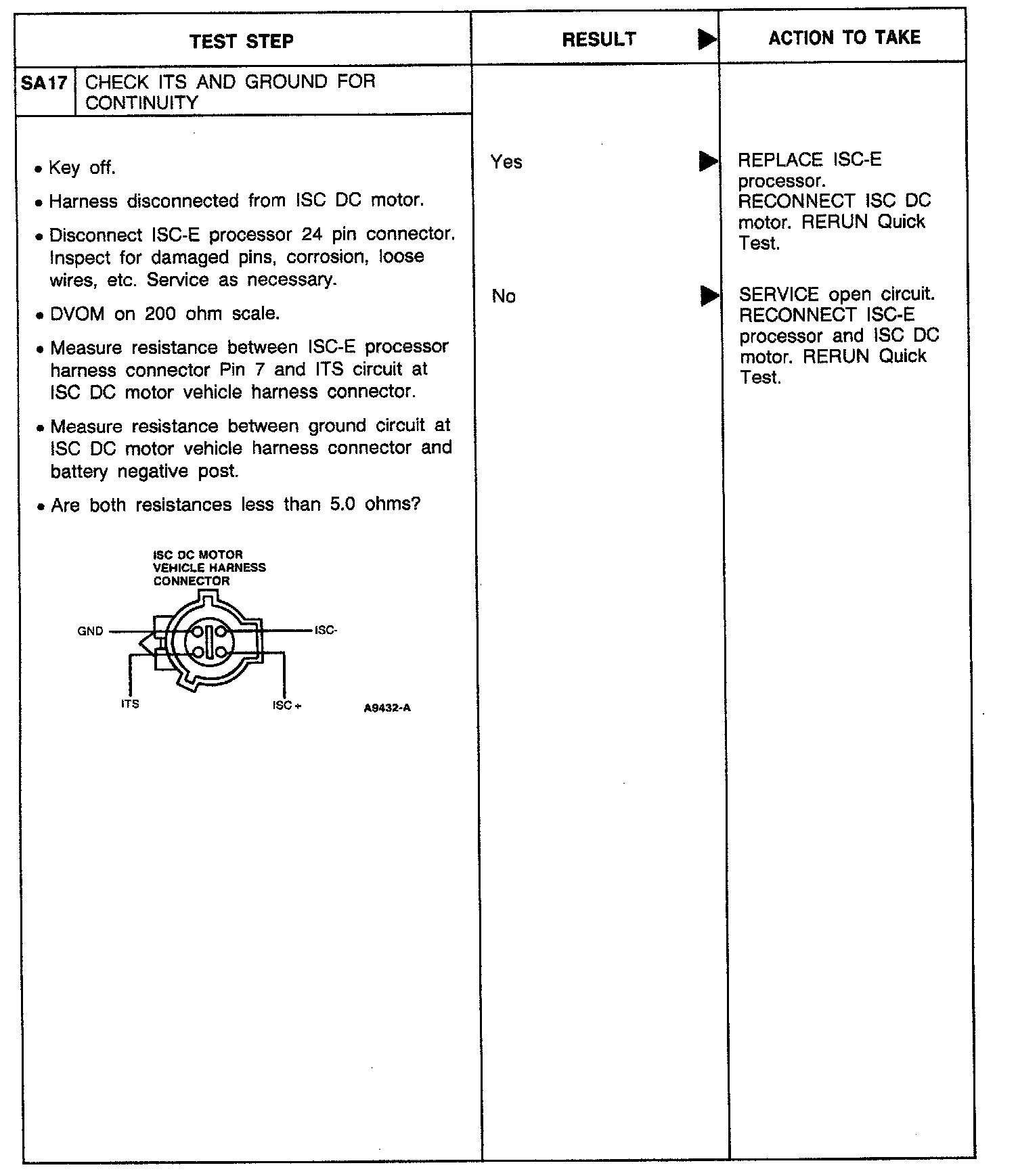

SA17:

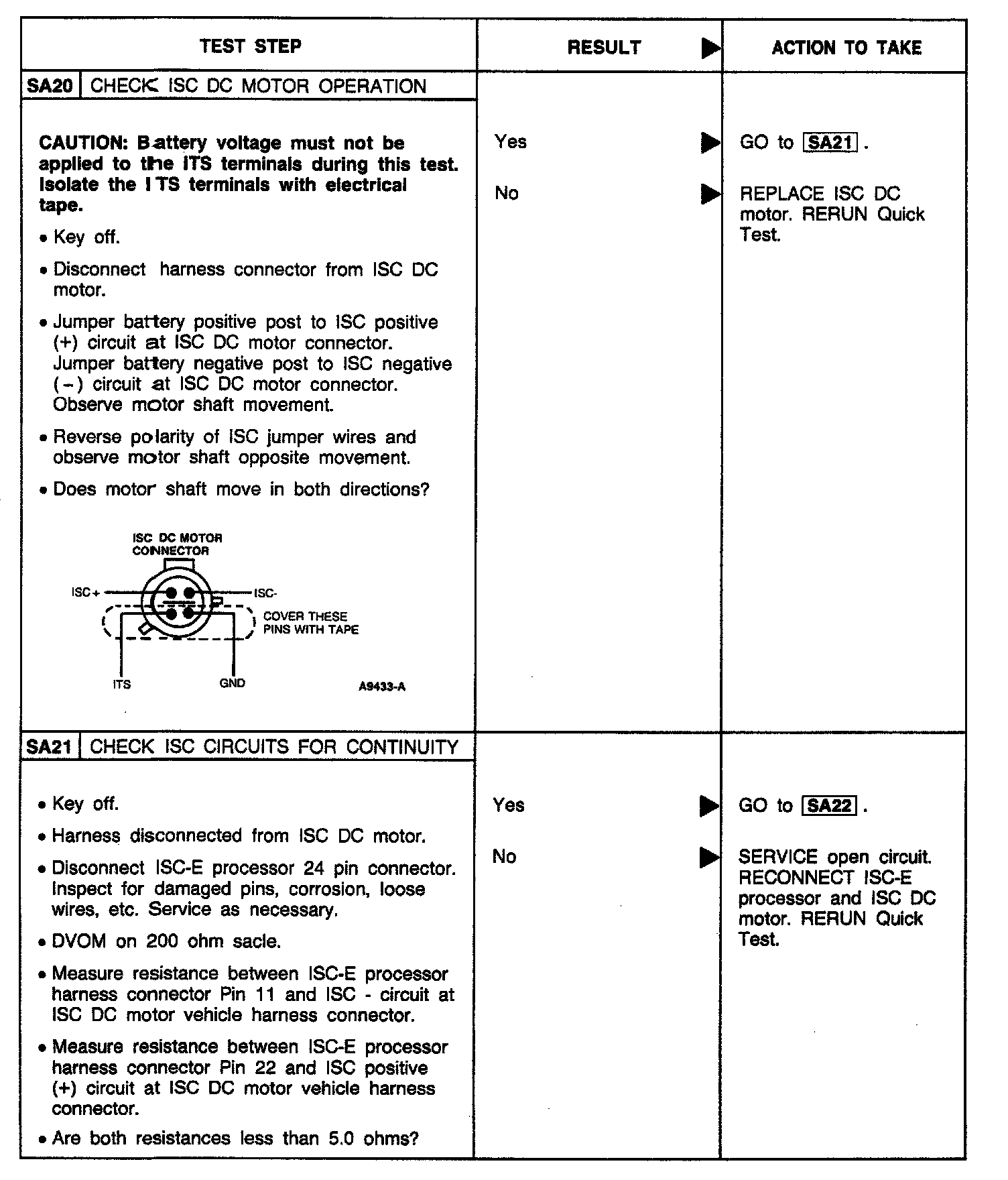

SA20 - SA21:

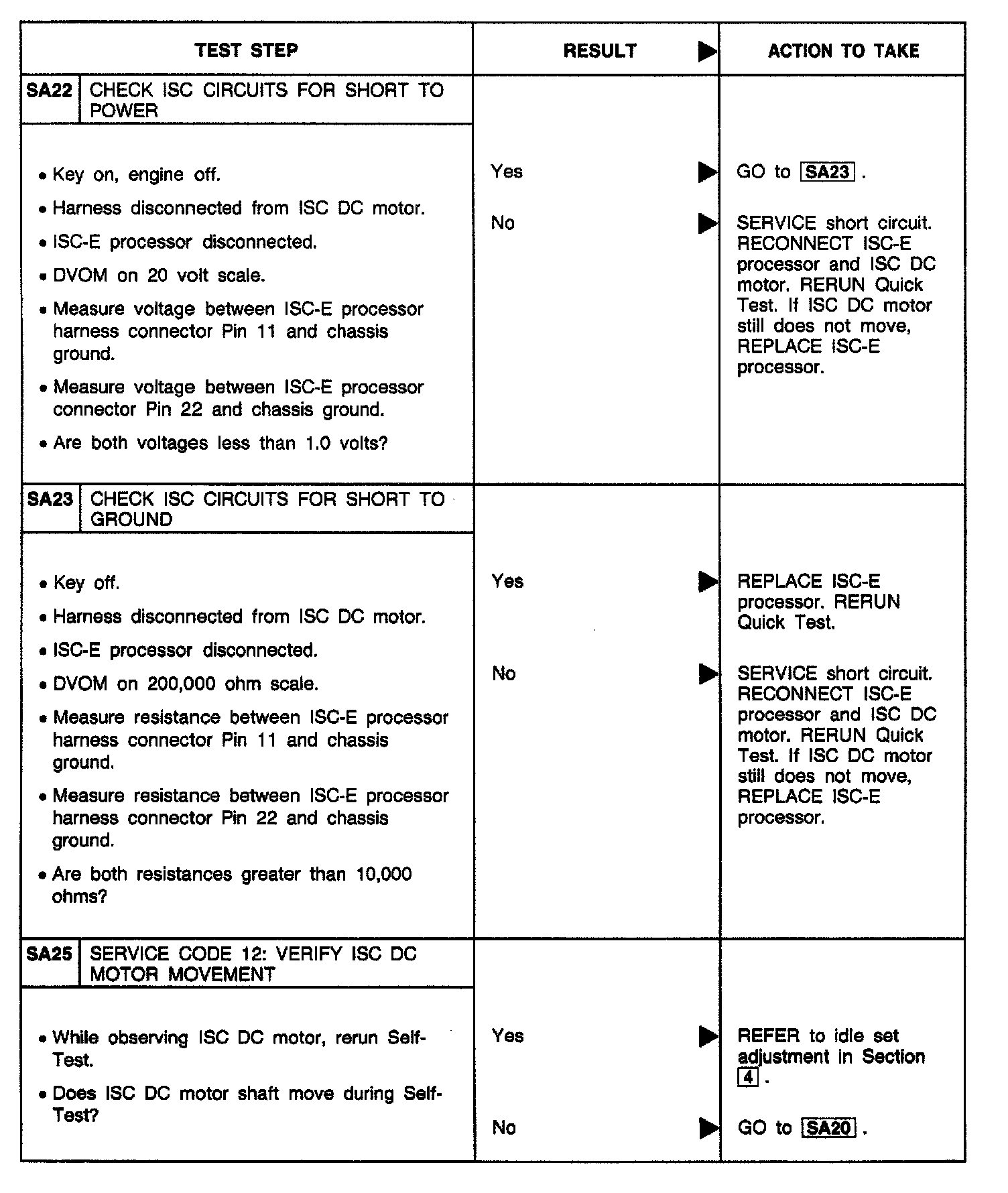

SA22 - SA25:

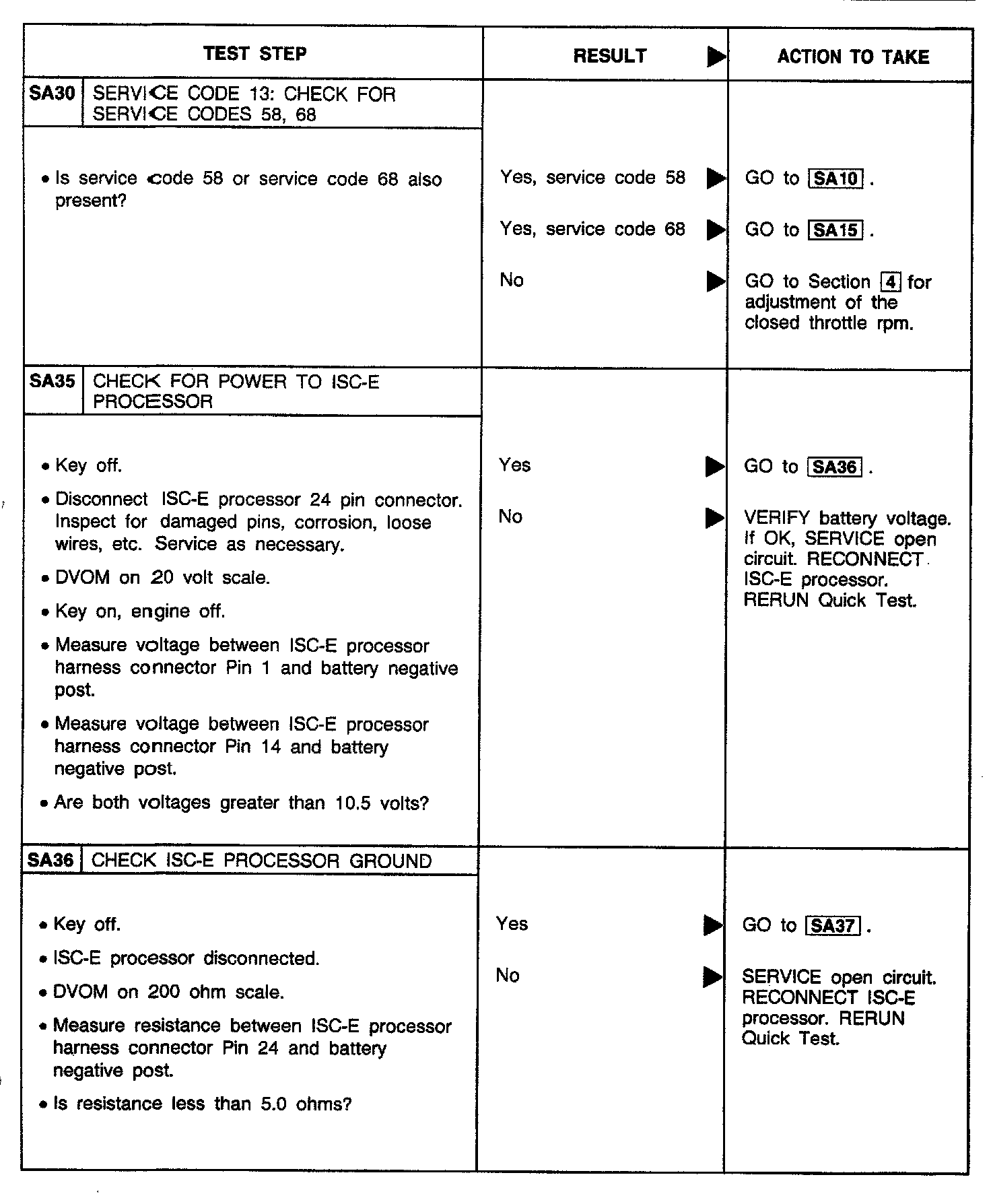

SA30 - SA36:

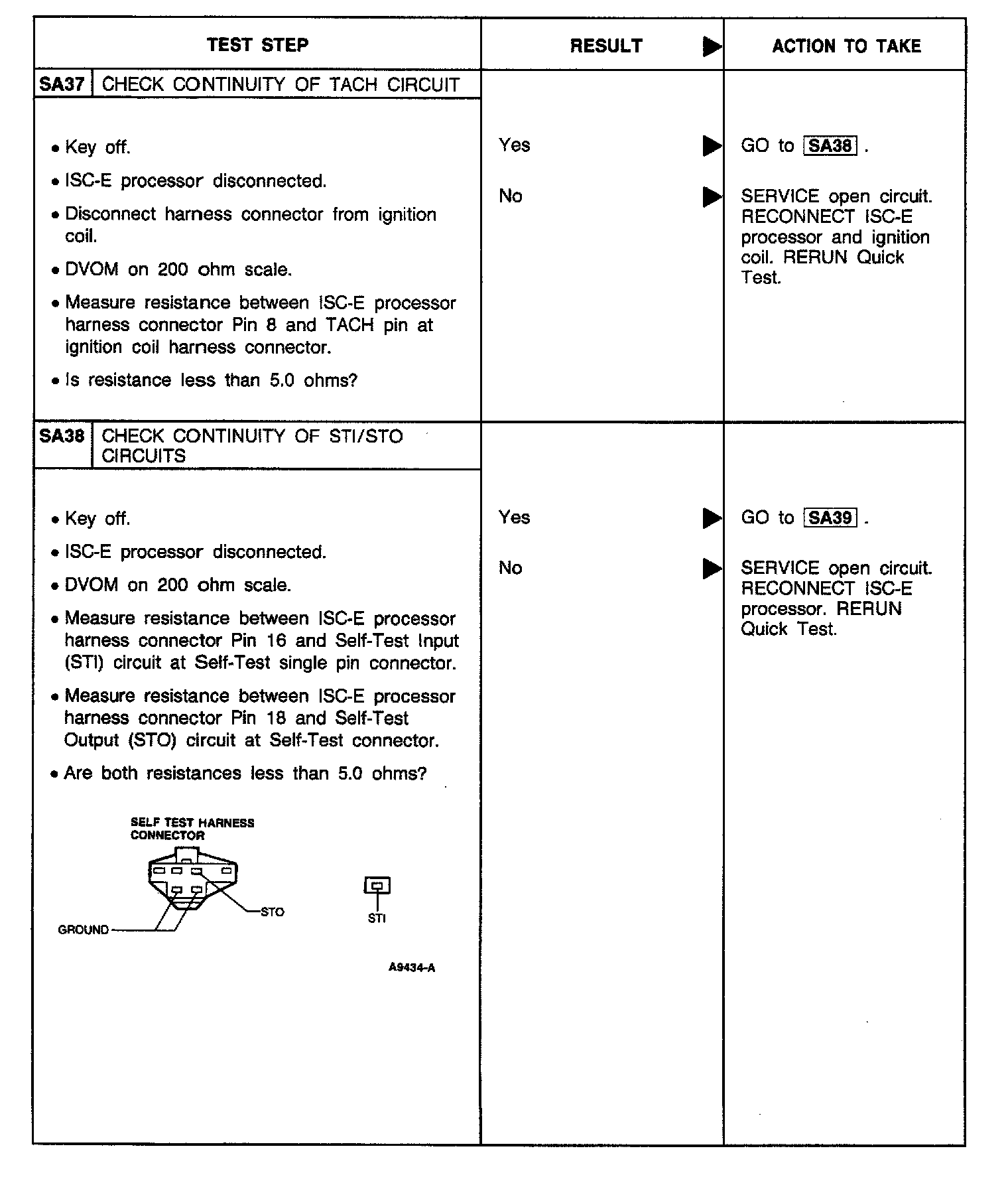

SA37 - SA38:

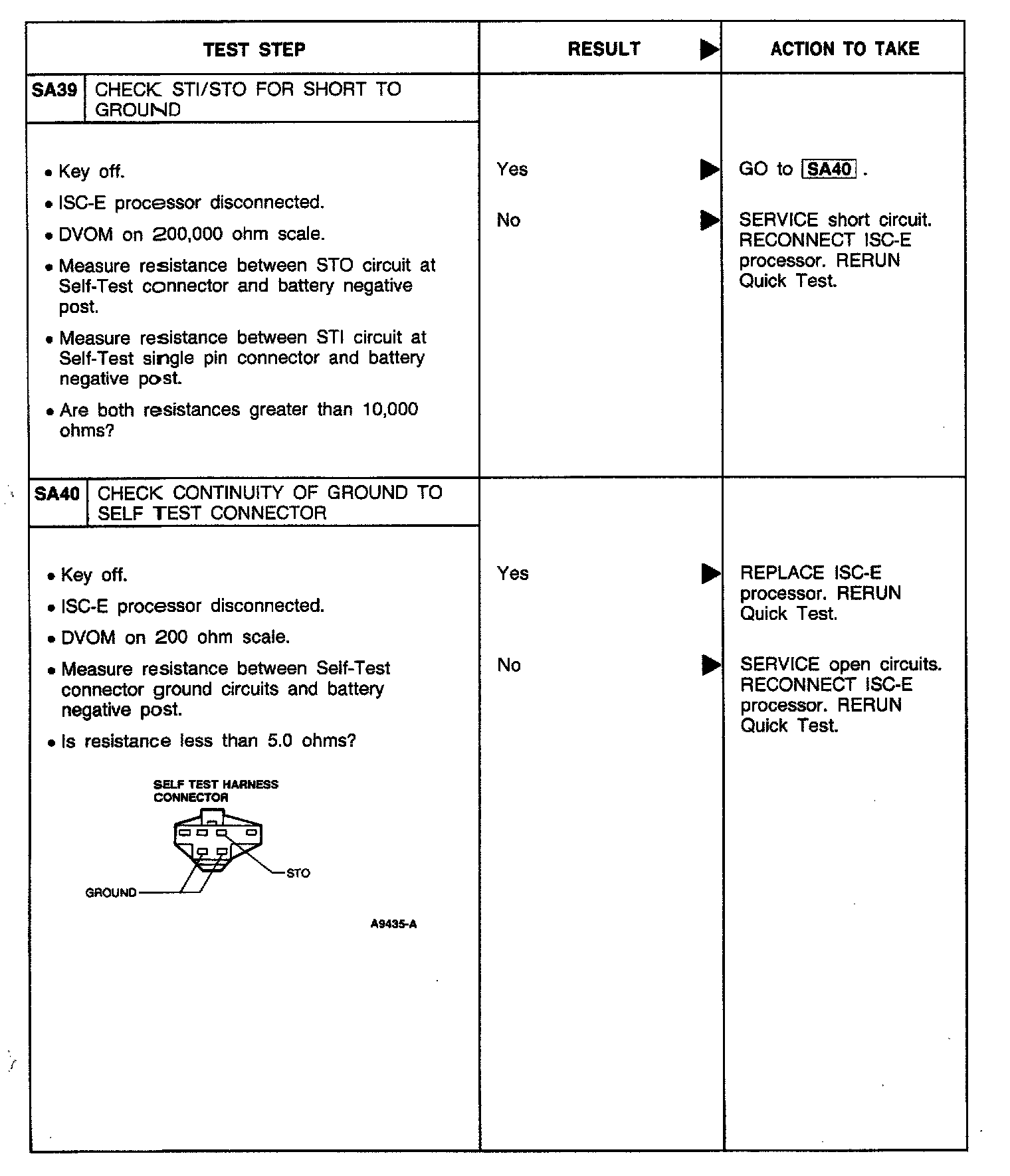

SA39 - SA40:
