Component Testing

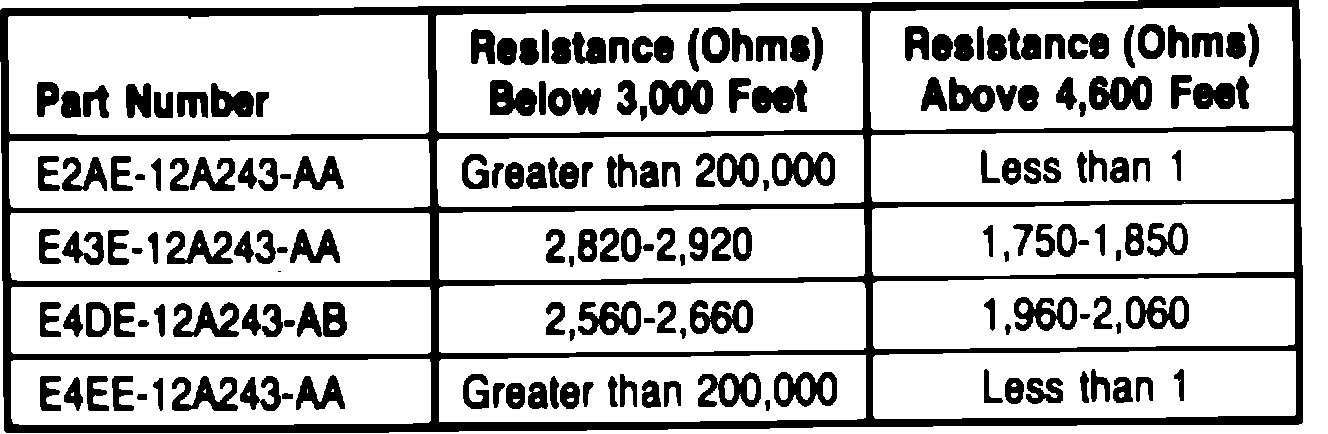

Fig. 43 Ignition barometric pressure switch resistance chart. 1985---87:

Ignition barometric pressure switch resistance chart. 1985-87


1. Disconnect switch from ignition module.
2. Connect suitable ohmmeter across switch terminals and compare resistance measured to values in chart.
3. Replace switch if resistance is not within specifications.
