Clutch Switch: Adjustments

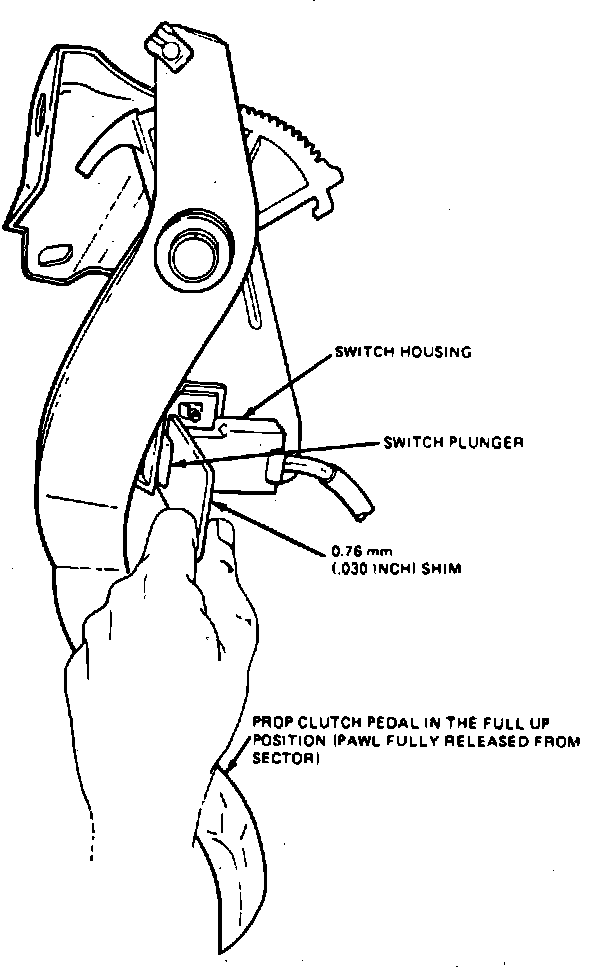

Fig. 5 Clutch switch:

1. Prop clutch pedal, Fig. 5, in full up position (pawl fully released from sector).
2. Loosen switch mounting screw.
3. Slide switch forward toward clutch pedal until switch plunger cap is .30 inch from contacting switch housing, then tighten attaching screw.
4. Remove prop from clutch pedal and test drive for clutch switch cancellation of a speed control.
