A/T - AXOD Exploded View and Part Numbers
>>

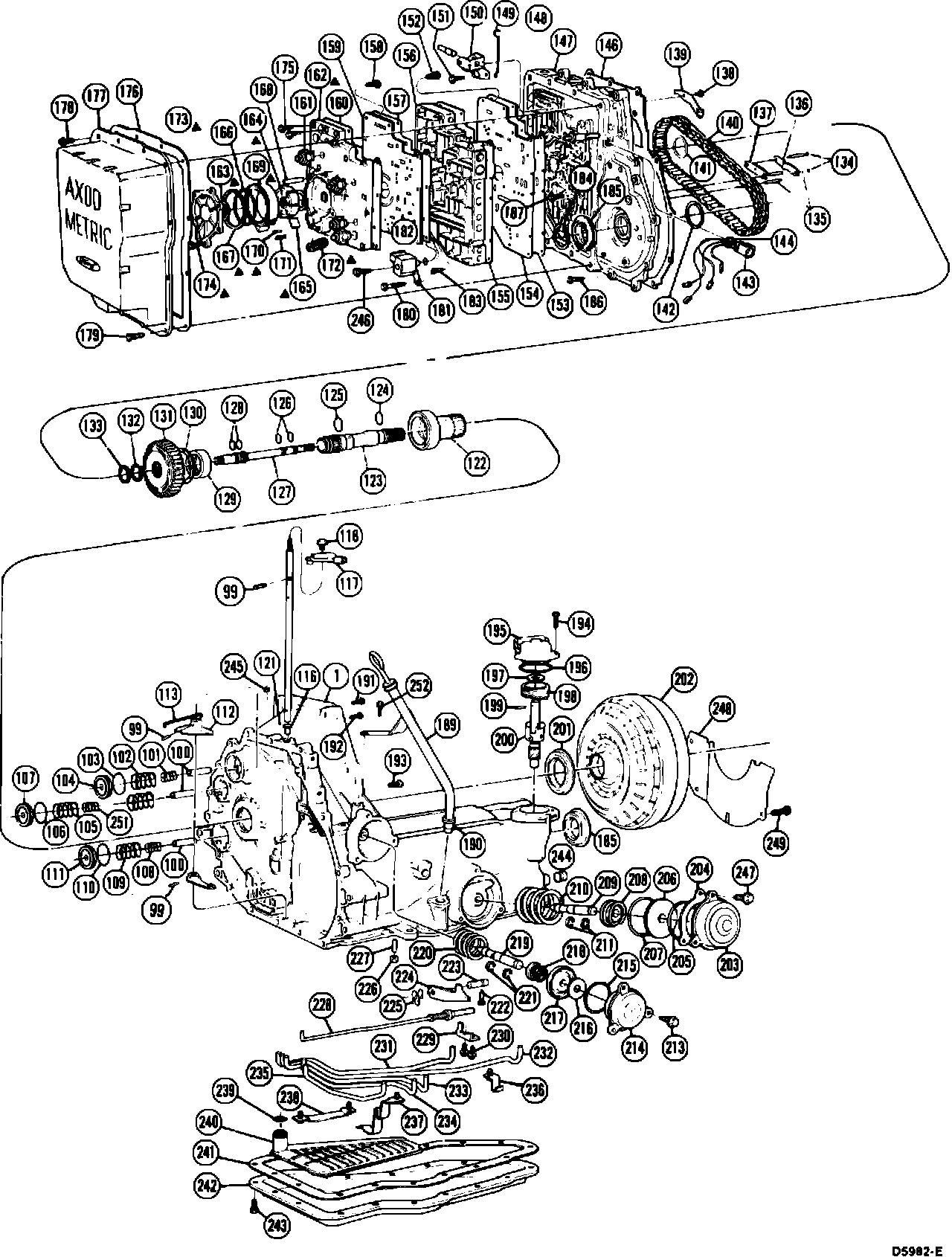

AXOD Exploded View
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

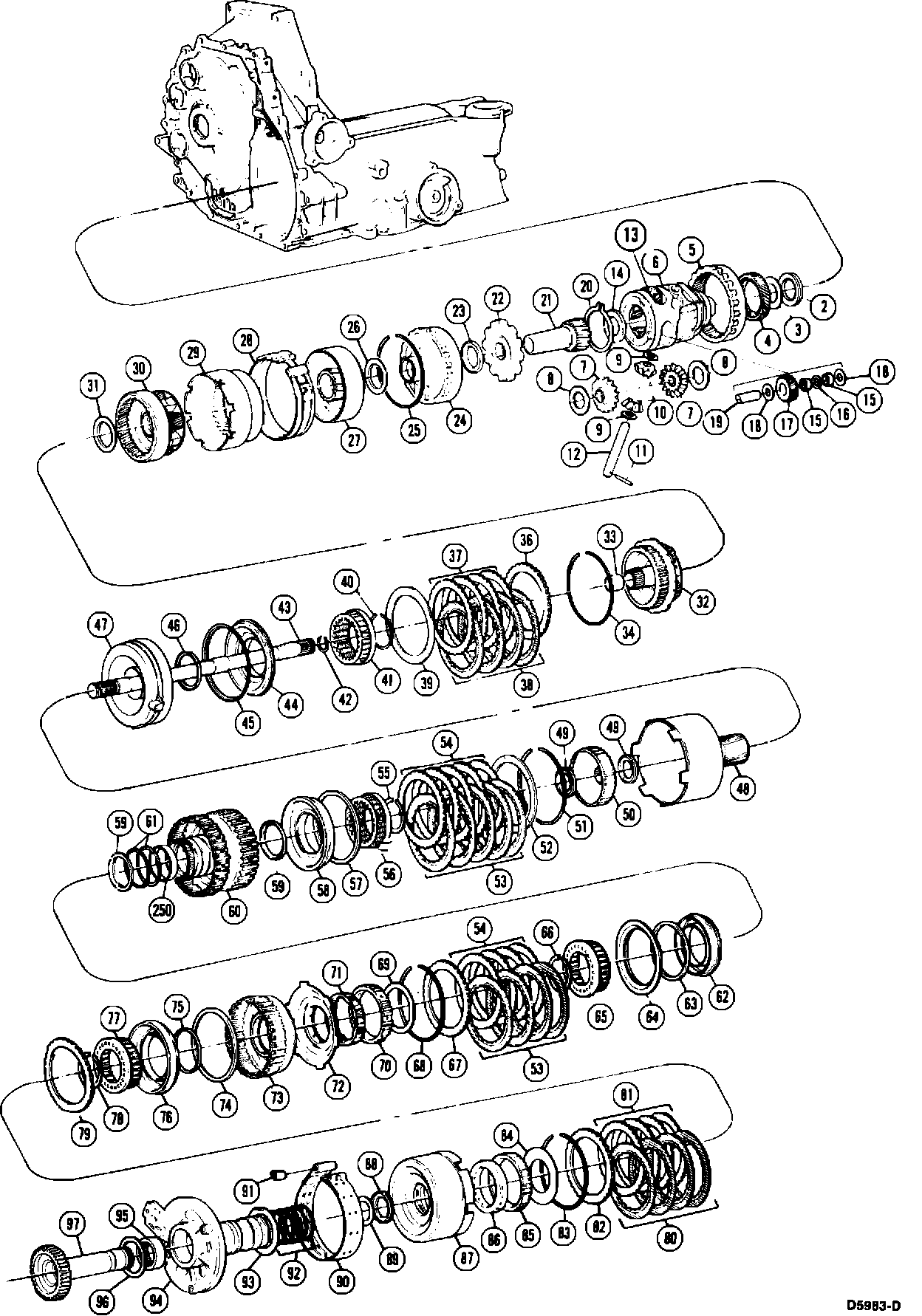

AXOD Exploded View
