Fuel System Anti-Slosh Module - Identification

88ford14

GAUGE - FUEL - MAGNETIC - ANTI-SLOSH MODULE APPLICATION AND IDENTIFICATION

Article No. 88-13-4

FORD: 1987-88 MUSTANG, TAURUS
1988 TEMPO

LINCOLN-MERCURY: 1987-88 SABLE
1988 TOPAZ

ISSUE: Three (3) different types of anti-slosh modules are currently used. The antislosh modules can be identified by part number, physical characteristics and model application.

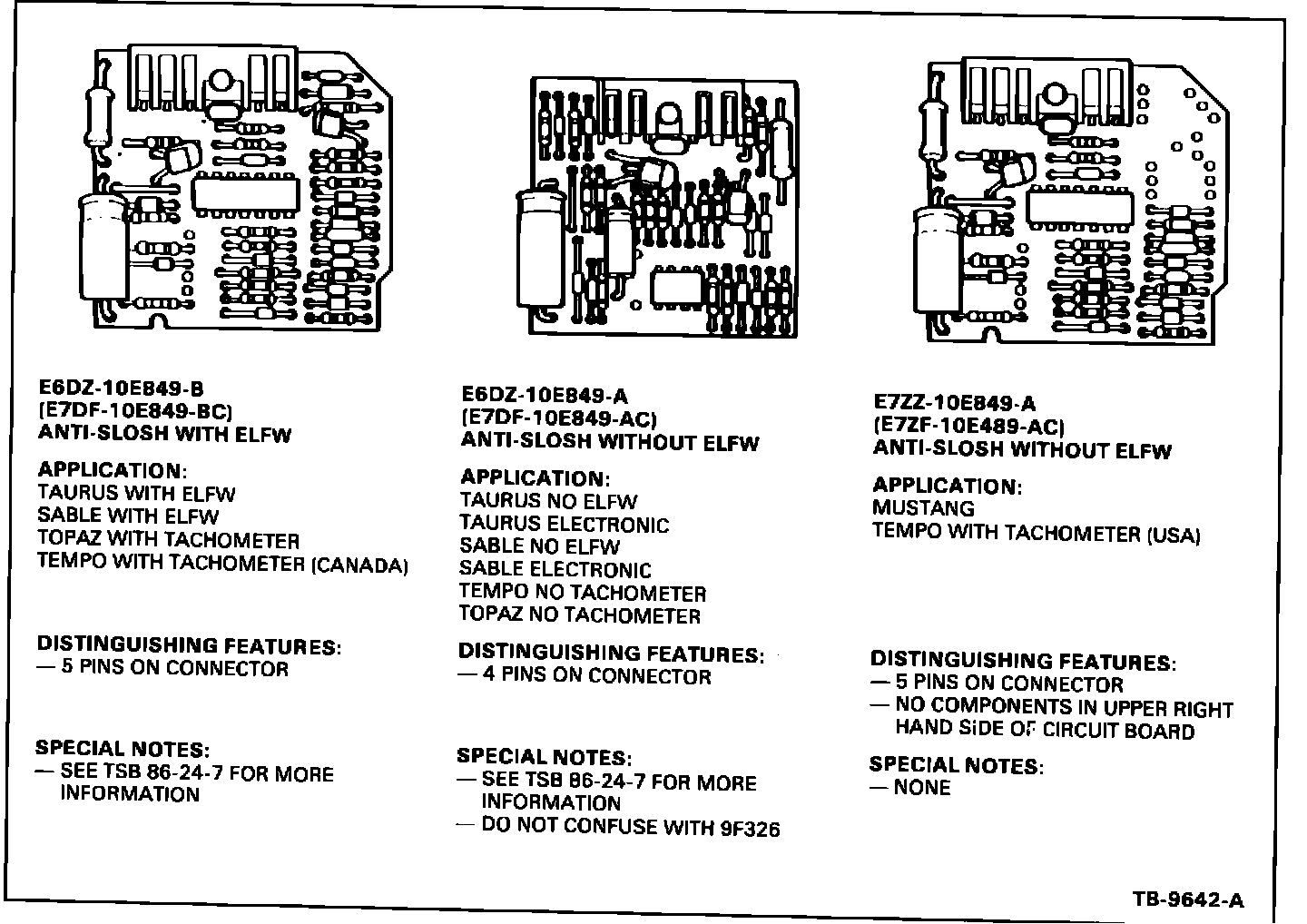

FIGURE 4:

ACTION: If service is required, refer to Figure 4 which provides the physical identification and model application for the three (3) modules.

PART NUMBER PART NAME CLASS

E6DZ-10E849-A Anti-Slosh Module B
E6DZ-10E849-B Anti-Slosh Module B
E7ZZ-10E849-A Anti-Slosh Module C

OTHER APPLICABLE ARTICLES: None
WARRANTY STATUS: "INFORMATION ONLY"
