Pinpoint Tests: Notes

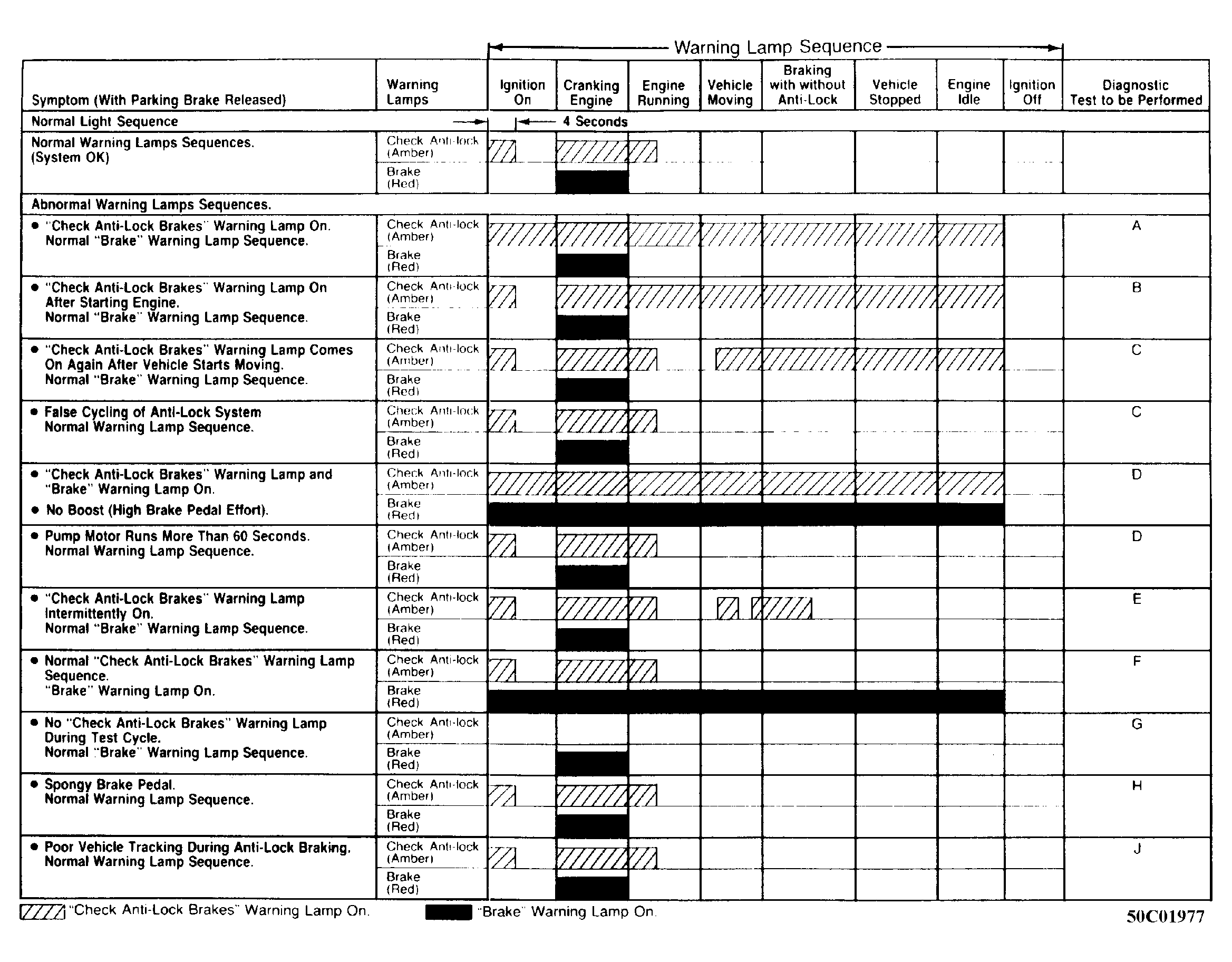

Fig 1: Light Sequence Chart (1986)

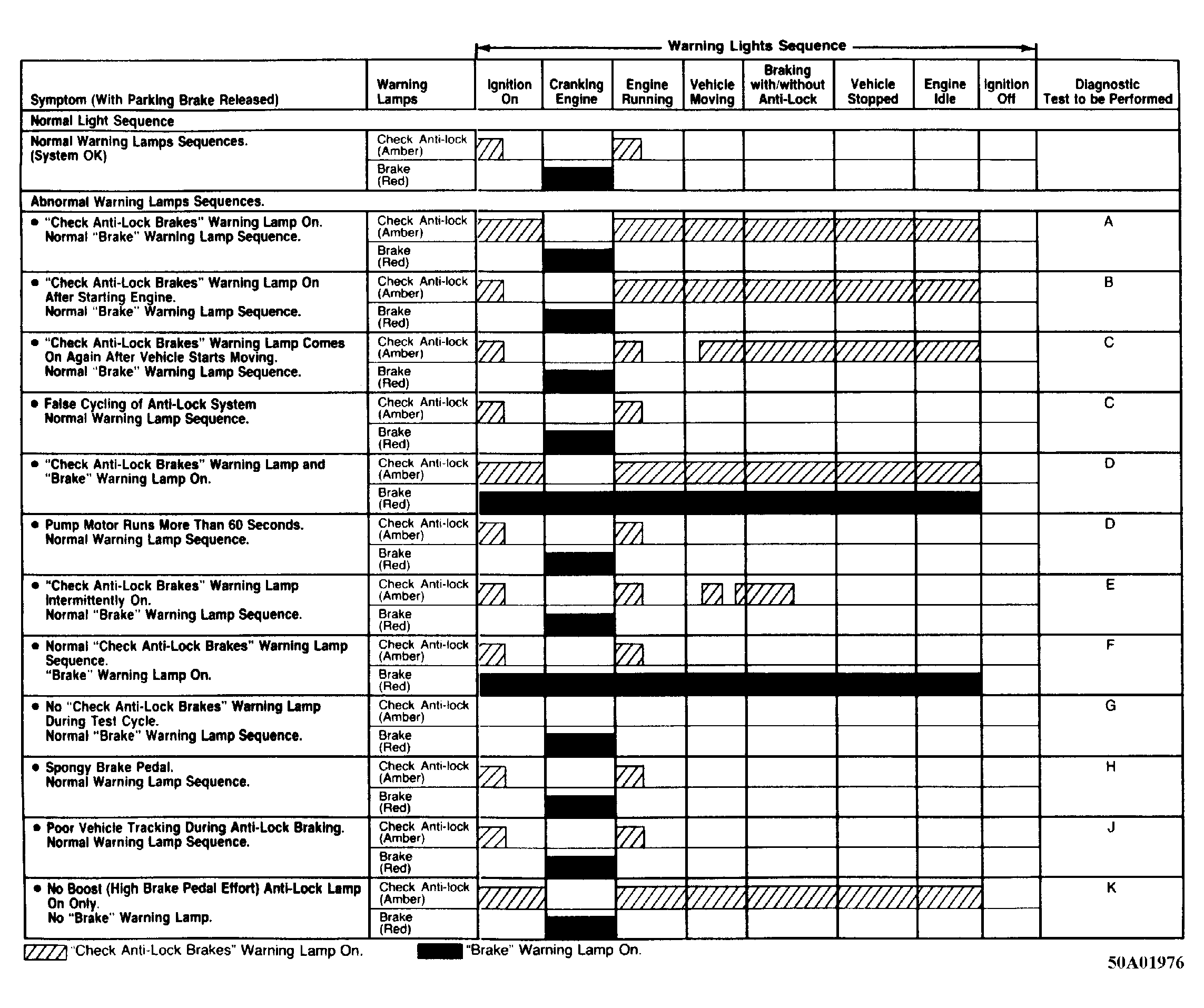

Fig 2: Light Sequence Chart (1987)

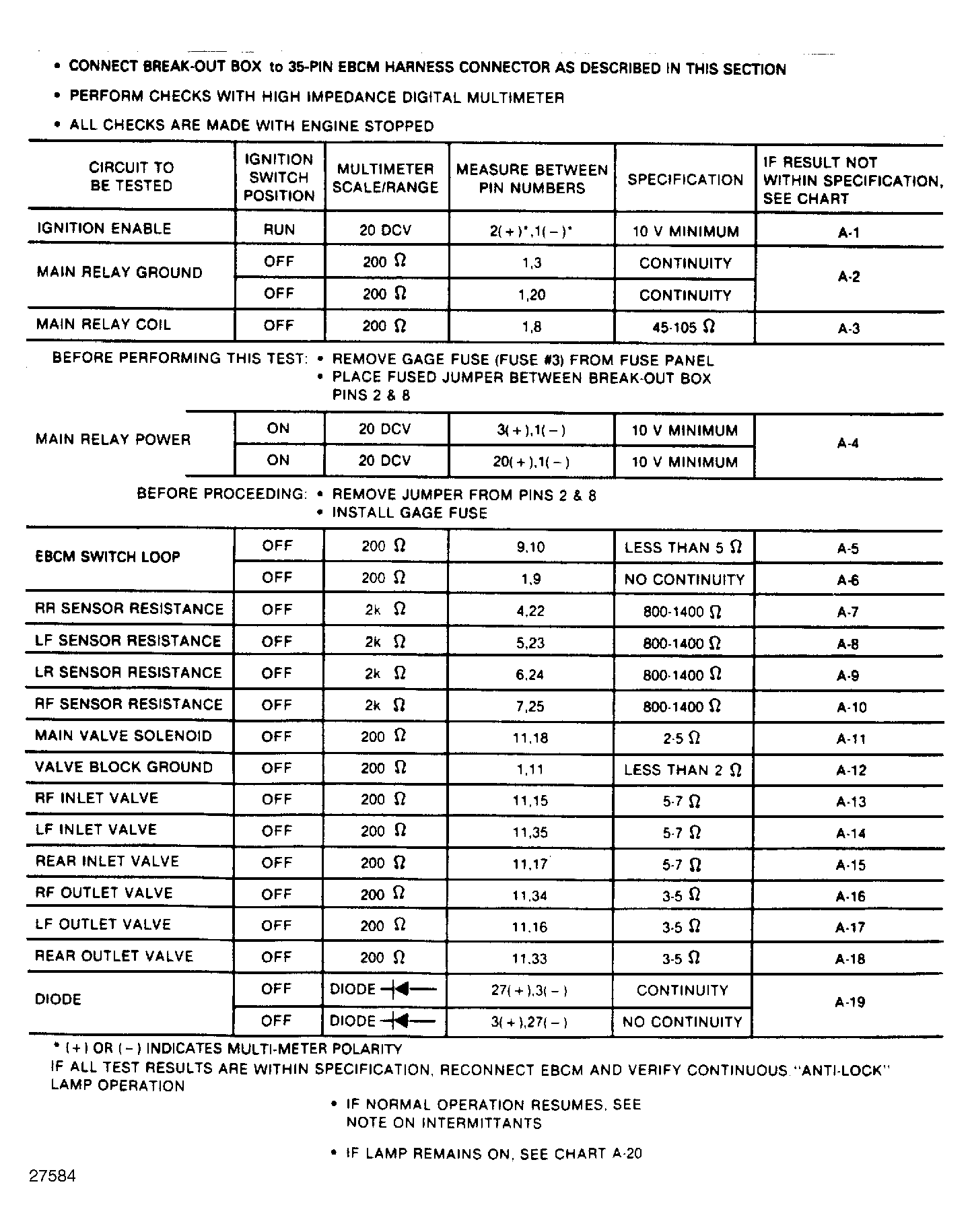

Fig 3: Test "A" Pin-Out Checks (All Except Ford Thunderbird)

Courtesy of FORD MOTOR CO.

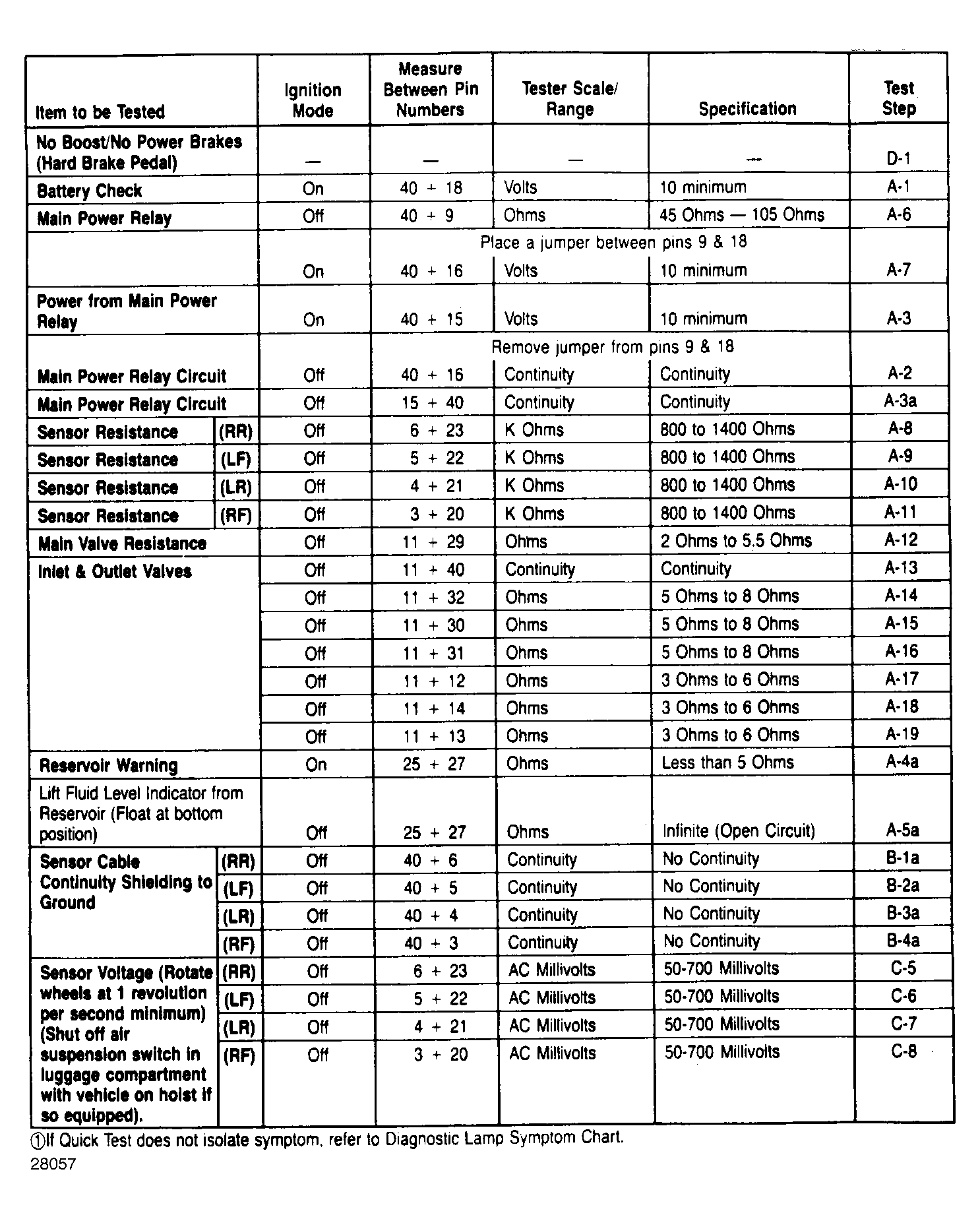

Fig 4: Test "A" Pin-Out Checks (Ford Thunderbird)

Courtesy of FORD MOTOR CO.

NOTE: The following charts AAI through FF1 are for use with Star Tester on Thunderbird models only. For circuit number references, see Fig 3.
