Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

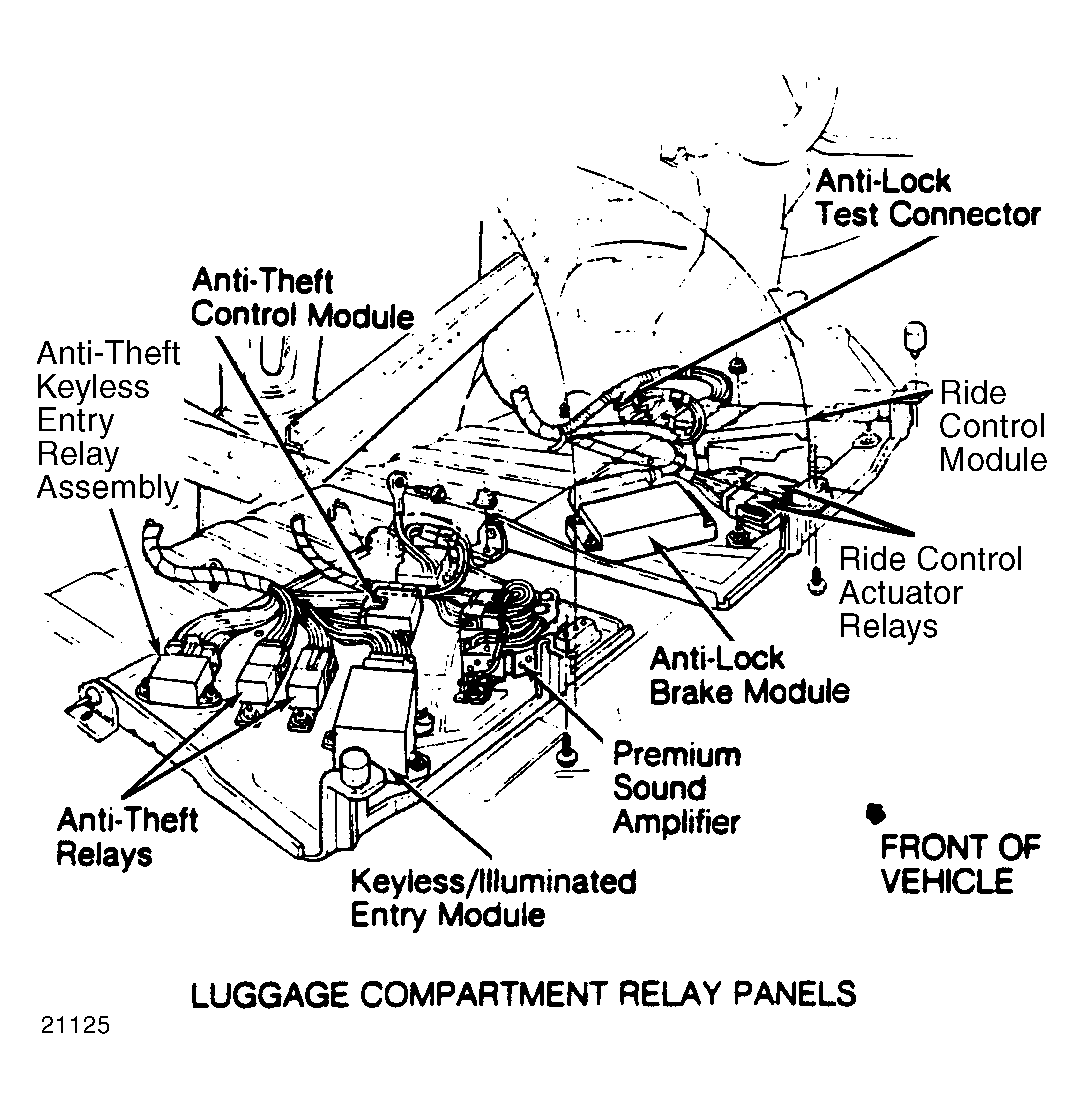

| ABS Module | In trunk below package shelf. See Figure. |
| A/C Blower Motor Speed Controller (ATC) | On center of evaporator case. |
| Anti-Theft Control Module | In upper left side of trunk. See Figure. |
| Driver's Memory Seat Module | Under driver's seat. |
| Electronic Control Assembly (ECA) | At access hole on right kick panel. |
| Integrated Control Module (2.3L) | Right front of engine bay. |
| Ride Control Module | In trunk on left side, behind rear seat. See Figure. |
| Keyless/Illuminated Entry Module | Mounted on package tray, behind rear seat. See Figure. |

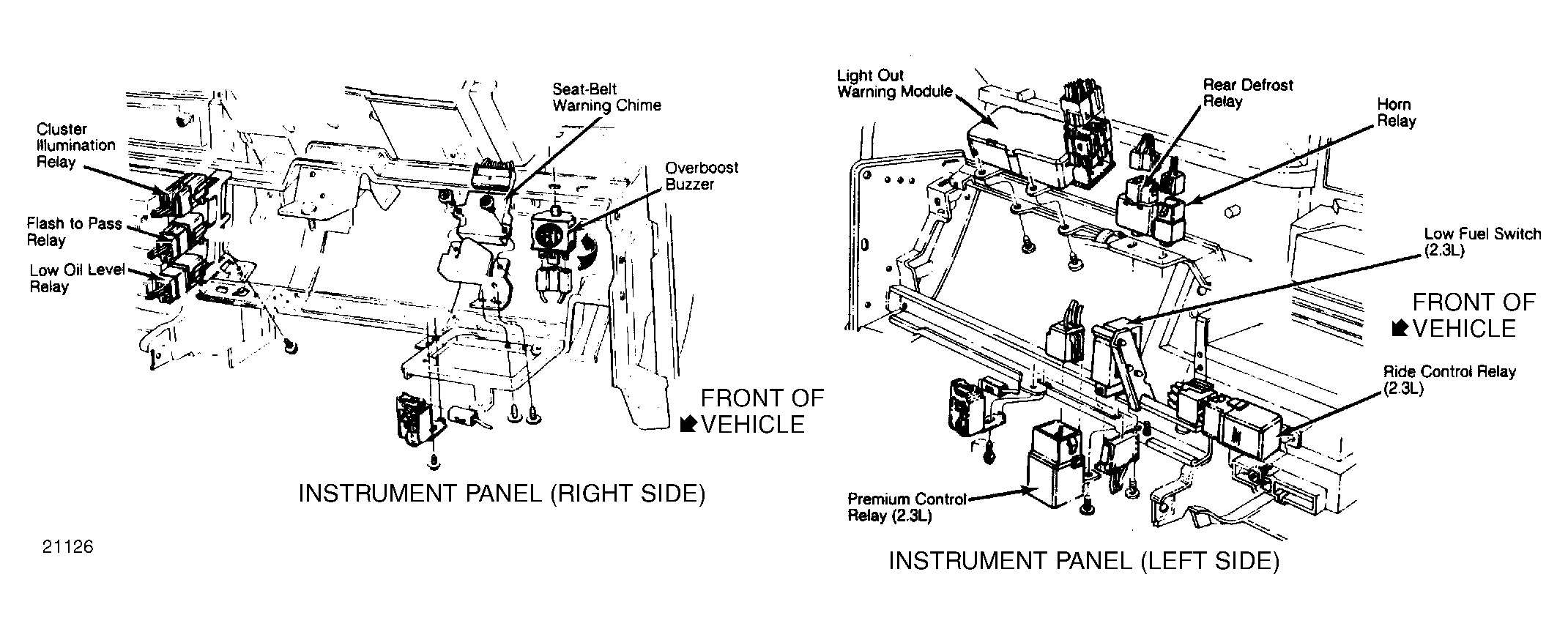

| Light Out Warning Module | Behind extreme right side of dash. See Figure. |
| Low Fuel Warning Module | Behind upper right side of dash, above glove box. |
| Voice Alert Module | Behind left side of dash. |
