Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location | |
|---|---|---|
| Cooling Fan Diode & Resistor (w/o A/C) | On left front fender apron, near ignition coil. | |

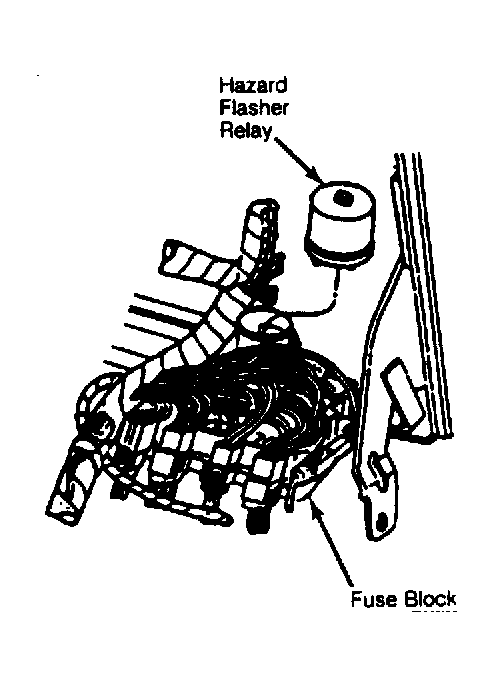

| Fuse Block | Under dash, to left of steering column. See Figure & Figure . | |
| Fusible Links | ||

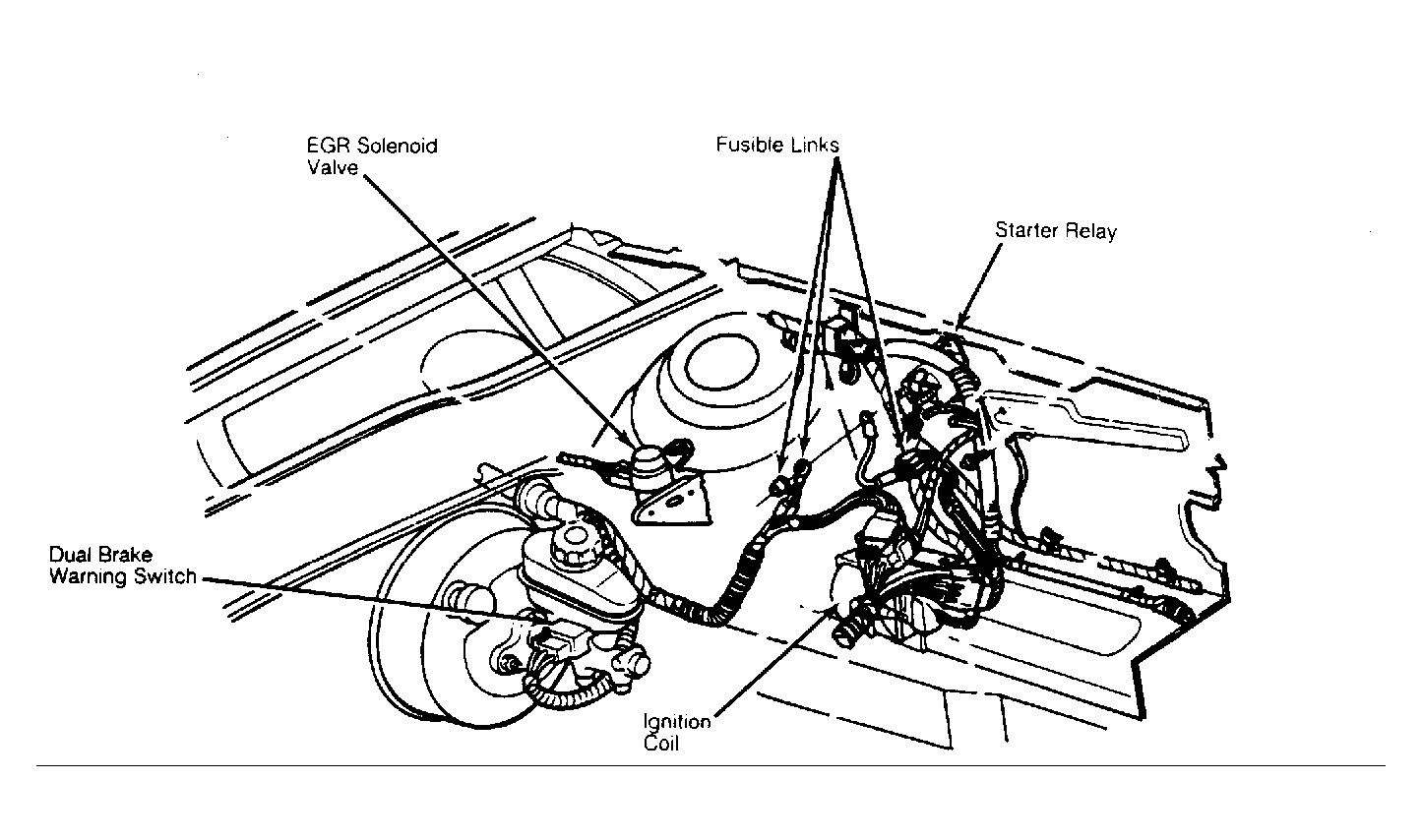

| A (Black/16 ga) Accessories | At starter relay. See Figure . | |
| B (Black/16 ga) Ignition Switch | At starter relay. See Figure . | |
| C (Brown/18 ga) A/C-Cooling Fan | At starter relay. See Figure . | |
| D (Green/14 ga) Charging System | At starter relay. See Figure . | |
| E (Black/16 ga) Defroster | At starter relay. See Figure . | |
| F (Blue/20 ga) Passive Restraint | At starter relay. See Figure . | |
| G (Blue/20 ga) A/C Control | Ahead of left shock tower. | |
| K (Blue/20 ga) ECA & Injectors | On left fender apron, near shock tower. | |
| X (Blue/20 ga) EFI Distributor | On left side of firewall. | |
| Idle Air By-Pass Diode | On left shock tower. | |
| Liftgate Circuit Breaker | Behind left side of instrument cluster. | |
| Non-Cycling Circ Breaker (w/o A/C) | On left fender, behind battery. | |
| Washer/Wiper Circuit Breaker | In cavity No 2 of fuse block.See Figure . | |
