Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| A/C Controller | On right side of dash, behind glove box. |

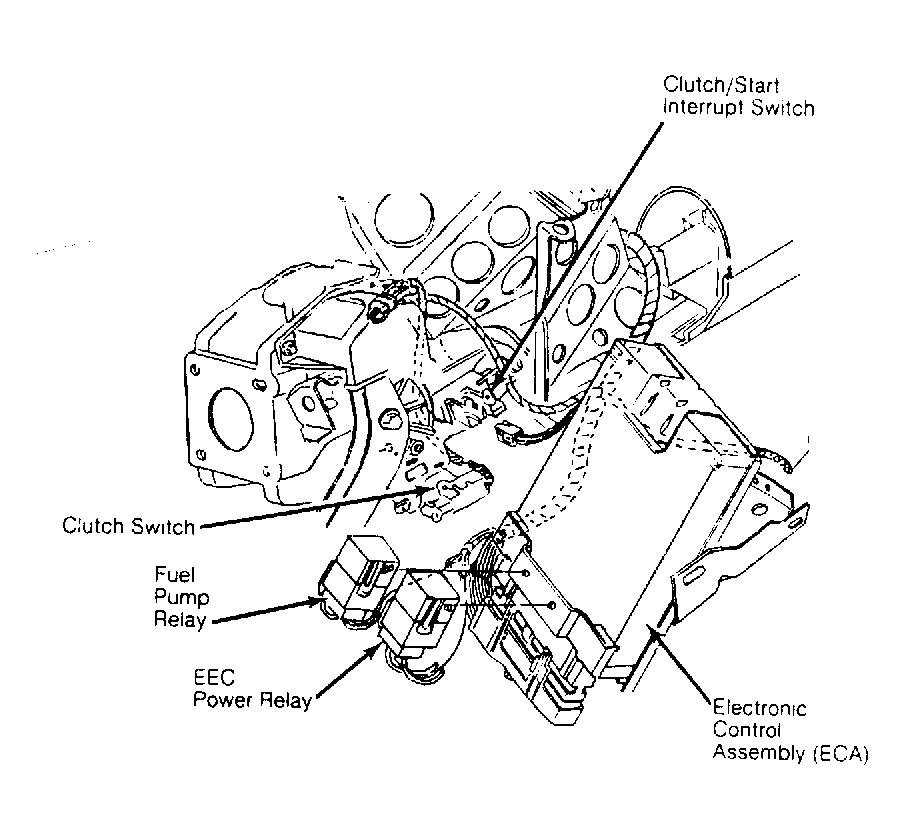

| Electronic Control Assembly (ECA) | Under left side of dash, above brake pedal. See Figure . |
| Low Fuel Warning Module | Behind instrument cluster. |
| Passive Restraint System Module | Behind instrument panel, to right of steering column. |
| TFI Module | On base of distributor. See Figure & Figure . |
